1. Overview
The Branching Playback Library (BPL) enables seamless reading of data streams, based
on a pre-defined scenario. This allows the system to branch between streams smoothly
during reads.
The BPL, however, manages only the data streams that are necessary for branching.
Use a decode-only library such as MPEG and Cinepak in conjunction with BPL to play
back data such as audio and video.
1.1 Organization of the Library
Figure 1.1 shows the organization of CD-related libraries.
Application
Software
Hardware
CD Block
SIMM,
SCSI File
CD Communication Interface (CDC)
File System
(GFS)
Stream System (STM)
MPEG
Library
(MPG)
Branching
Playback
Library (BPL)
Cinepak
Library
(CPK)
Figure 1.1 Organization of CD-related libraries
The Branching Playback Library requires each of the following libraries: Stream Sys-
tem, File System, and CD Communication Interface.
background image
SEGA Confidential

Branching Playback Library User's Manual
5
1.2 Summary of Branching Playback Library Functions
1. Setting the Branch Destination (Scenario) Information
This function sets destination stream candidates as destination (scenario) information.
2. Pre-reading the Streams Necessary for Branching
The BPL manages the opening/closing of streams to smoothly branch between streams.
By pre-reading an open stream (a branching destination stream candidate) into the CD
buffer, the stream can be fetched without interruption when the branch destination is
determined.
3. Destination Selection Function
The BPL selects the actual destination from the destination candidates.
4. Destination Stream Notification Function
Based on the selected destination, the BPL notifies the application of the next stream to
be played.
Stream handle
Application
Select a
destination
BPL
STM_Open, STM_Close
Stream System
Create, EntryNext
Decoder (Cinepak, MPEG, etc.)
Set initialization and destination information
Figure 1.2 Stream system overview diagram
background image
SEGA Confidential
6
2. Basic Items
2.1 Definitions
Table 2.1
Terminology
Table 2.2 List of abbreviations
Other terms that appear in this manual are based on the CD Communication Interface,
the File System, and the Stream System Libraries.
2.2 Restrictions on Names
The BPL uses the following function, variable, type, and macro names:
Function/variable name:
BP~
and
bp~
Type name:
Bp~
Macro name:
BP~
The libraries required by the BPL use the following global symbols:
Table 2.3
Symbol names and libraries
These symbols must not be used by the application program.
Abbreviation
Meaning
Description
BPL
branch play
branching playback
bstm
branch stream
branch stream
bstmid
branch stream ID
branch stream ID
brno
branch No.
branch No.
bstmmax
branch stream max
Total number of branch
streams
brmax
branch max
Total number of branches
Library Name
Symbol
Stream System
ST~, st~, St~
File System
GF~, gf~, Gf~
CD Communication Interface
CD~, cd~, Cd~
Term
Meaning
Branch stream
Equivalent to a file on a CD. The BPL reads a stream
based on a scenario that is set for a branch stream.
Different types of stream data (e.g., audio, video) can
be fetched by performing channel-interleaving within a
branch stream (normally, interleaving by means of a
subheader).
Branch stream ID
This ID identifies the branch stream. Given this ID, the
read file, stream key, or destination information can be
set or fetched.
Branch number
This number specifies the branch destination.
Equivalent to the event types such as input from a
control pad.
background image
SEGA Confidential

Branching Playback Library User's Manual
7
3. How the BPL Works
3.1 Flow of Processing
The BPL reads a stream according to a given scenario and notifies the application of the
stream handle that must be decoded.
Figure 3.1 shows the flow of main processing events.
Initialization (
BPL_Init
)
Sets a scenario
(
BPL_SetStmInfo
BPL_SetBranchInfo
)
BPL server execution
(
BPL_ExecServer
)
Specifies a work area
Sets branch stream infor-
mation and destination
information.
Selects a destination
(
BPL_SelectBranch
)
Fetches a branch stream
(
BPL_GetCurStm
BPL_GetNextStm
)
A
p
p
l
i
c
a
t
i
o
n
Figure 3.1 Flow of processing
background image
SEGA Confidential
8
3.2 Scenario
A scenario is information that indicates how branching playback is to be performed as a
function of time (the order in which streams are to be played).
Branched streams are specified in file units. Audio and video data can be fetched by
channel-interleaving within a file.
bstm1
bstm2
bstm3
bstm4
bstm5
bstm6
bstm7
bstm8
bstm9
bstm10
bstm11
bstm12
bstm13
bstm14
bstm15
bstm16
bstm17
bstm18
bstm19
Branch Number
0
2
3
1

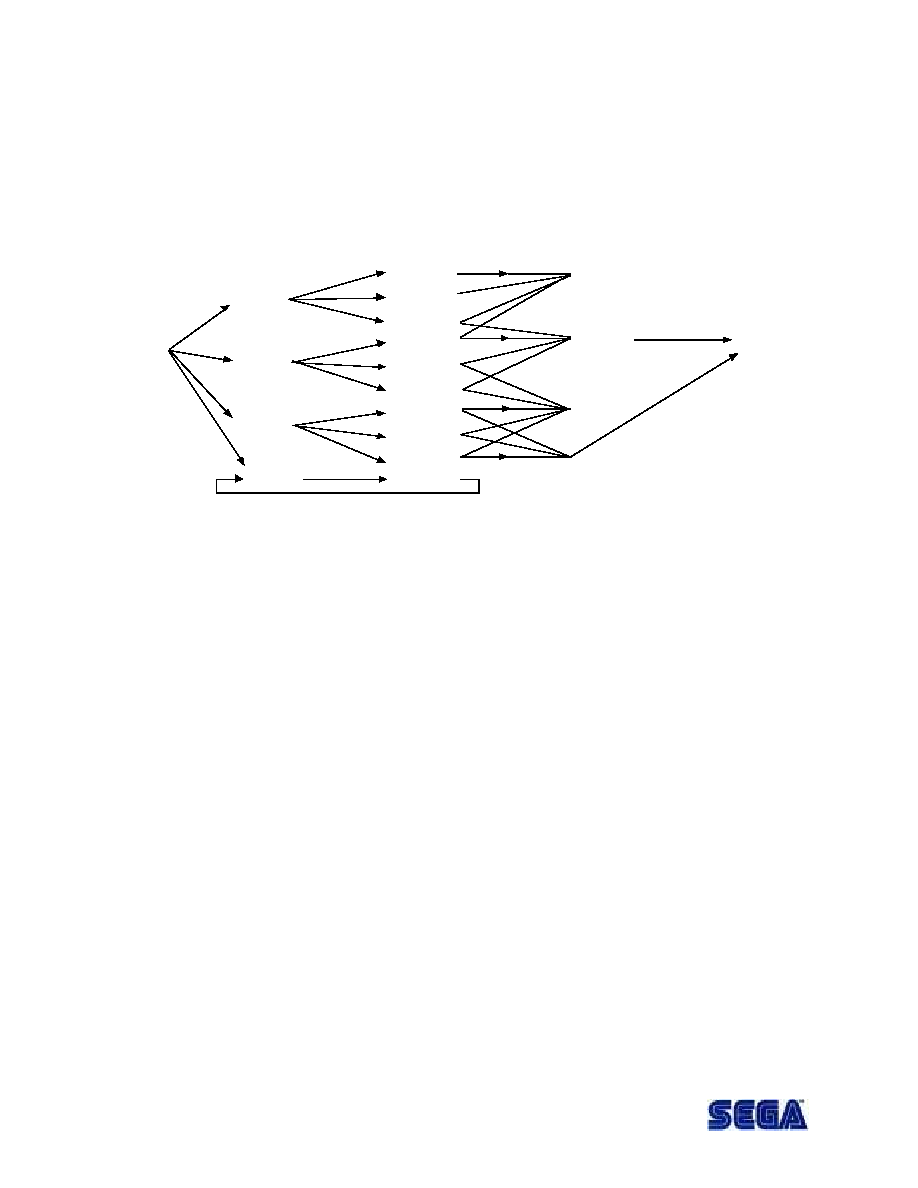

Figure 3.2
Stream-branching
(a)
This scenario specifies
bstm1
as the branch stream to be read first. The BPL then
starts reading
bstm1
.
(b) The application fetches the branch stream that is currently being read and sets it in
the decoder.
(c)
After reading
bstm1
, the BPL begins reading branch candidates (branch streams
that may be fetched next)
bstm2
,
bstm3
,
bstm4
, and
bstm5
. Effective use of the CD
buffer and smoother branching is made possible by pre-reading branch candidate
streams.
(d) The application fetches events such as input from a control pad and selects the
destination for branching. If branch numbers 0~3 are assigned to branches
bstm2
,
bstm3
,
bstm4
, and
bstm5
, and if 1 is specified, reading of
bstm2
,
bstm4
and
bstm5
,
which is no longer needed, is canceled. If necessary, the application fetches the
destination stream and sets it in the decoder.
(e)
After fetching
bstm1
, the BPL begins fetching
bstm3
.
If the application specifies the execution of branching to the Branch Play Server,
the BPL begins reading
bstm9
,
bstm10
, and
bstm11
, as in (c).
background image
SEGA Confidential

Branching Playback Library User's Manual
9
3.3 Changing Branching Playback States

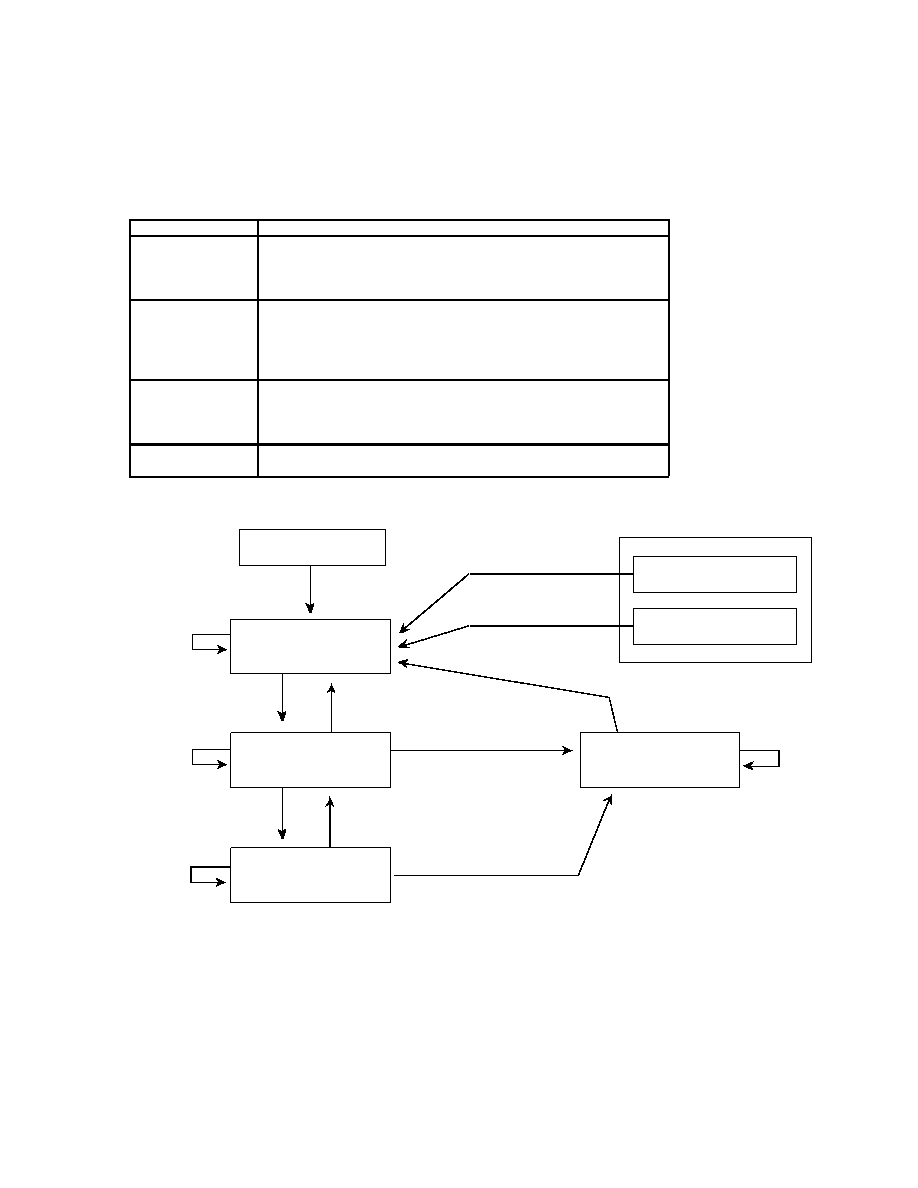

Table 3.1 shows branching playback states. Figure 3.1 shows a branching playback
state transition diagram.
Table 3.1 Branching playback states
The server function can get the branching playback status.
Figure 3.3 BP state transition diagram
State
Description
End of branching
playback
Branching playback ended.
The stream group and the streams that were opened by the
BPL (the current stream and candidate streams ) are all
closed.
Wait for a
destination
selection
Branch candidates were pre-read, but a destination has not
been selected.
All streams among the branch candidates are subject to pre -
reading. Only the current stream can be accessed. Destination
streams cannot be accessed.
Determine
destination
A destination was selected from the branch candidates.
Only the selected destination is pre-read.
Both the current stream and the destination stream can be
accessed.
No destination
There are no branch candidates or destinations for the current
stream. The last stream is being played.
OFF
ON
ON
ON
ON/OFF
OFF
OFF
Branching playback
complete
(
BPL_SVR_COMPLETED
)
Wait for the selection
(
BPL_SVR_WAITSEL
)
Destination selected
(
BPL_SVR_SELECT
)
No destination
(
BPL_SVR_NOBRN
)
Initialize branching
playback
BPL_Init
function
Reset branching
playback
Stop branching
playback
Executable in all states
No candidates
The selected destination was
BPL_BR_NONE
.
(See the
BPL_SetBranchInfo
function.)
BPL_SetStart
function
specifies
BPL_BR_NONE
BPL_Reset
function
BPL_SetStart
function
BPL_SelBranch
function
и ON/OFF:
Branch execution switch for the Branching Playback Server function
BPL_ExecServer
.
If ON is specified in a destination selection wait or no destination state, then branching
playback
is
terminated.
If ON is specified in the selected selected state, then branch streams are changed.
background image
SEGA Confidential
10
3.4 Executing Branching (Branch Stream-Switching)
(1)
Executing branching
When branching is performed in the destination selected state (by turning on the
branch execution switch of the Branching Playback Server), branch streams are
switched as follows:
(a)
The current stream, A, is closed.
(The BPL stops reading A and deletes any data that remains in the CD buffer.)
(b)
The destination stream, B, becomes the current stream.
(c)
The destination stream becomes undefined.
Table 3.2 Switching branch streams by executing branching
The selection of a destination always precedes the execution of branching (switching).
However, the selection and switching operations are generally performed asynchronously.
(2)
Opening and closing a stream
The BPL opens both the current stream and branch candidate streams. The BPL
employs the following opening and closing procedures:
(a)
Starting playback stream specified by the
BPL_SetStart
function is opened first as the
current stream.
(b)
When the reading of the current stream begins, branch candidate streams are opened.
(c)
When a destination is selected, all other branch candidates are closed, and only the destina-
tion is pre-read.
(d)
When branching is executed, the current stream is closed.
The destination stream becomes the current stream, and steps(b)~(d) are repeated.
(e)
When branching playback is completed, the stream group is closed.
(3)
Timing for branch stream-switching
Table 3.3 shows the timing types for branch stream-switching.
Table 3.3 Timing for branch stream-switching
Branching must not be executed until the decoder finishes processing the current stream;
even when a destination is determined (to prevent truncation of the stream data that is
being decoded).
Regardless of whether normal or forced switching is performed, switching processes for
the decoder should be executed first. The branch execution switch should be turned on
only after switching is complete.
Branch Stream
Before
Branching
After Branching (after switching)
Current stream (obtained by the
BPL_GetCurStm
function)
A
B
(A is closed)
Destination stream (obtained by
the
BPL_GetNextStm
function)
B
Undefined until the next destination is
selected and determined by the
BPL_SelectBranch
function
Timing
Description
Natural
switching
Switches to destination stream B upon completion of decoding
stream A.
Forced switching
Force switch to destination stream B regardless of whether
stream A is being decoded.
background image
SEGA Confidential


Branching Playback Library User's Manual
11
4. Organization of Files on Disc
The total amount of streams that can be pre-read is limited by the capacity of the CD
buffer (a maximum of 200 sectors). Therefore, streams that exceed the limit and can not
be pre-read may result in branching delays.
1. Non-interleaved branch candidates
Suppose that A's branch candidates are B and C and that files are positioned on disc as
shown in Figure 4.1. Then, only file B can be pre-read.
There will be no problems if the pre-read data of A is sufficient to seek/branch to B or
C. However, if both B and C need to be pre-read in order to enable delayed branch
selection timing, branching to C in this example cannot be performed without delay.
A
B
C
A
B
C
Stream branching
Position of files on disk
200 or more sectors

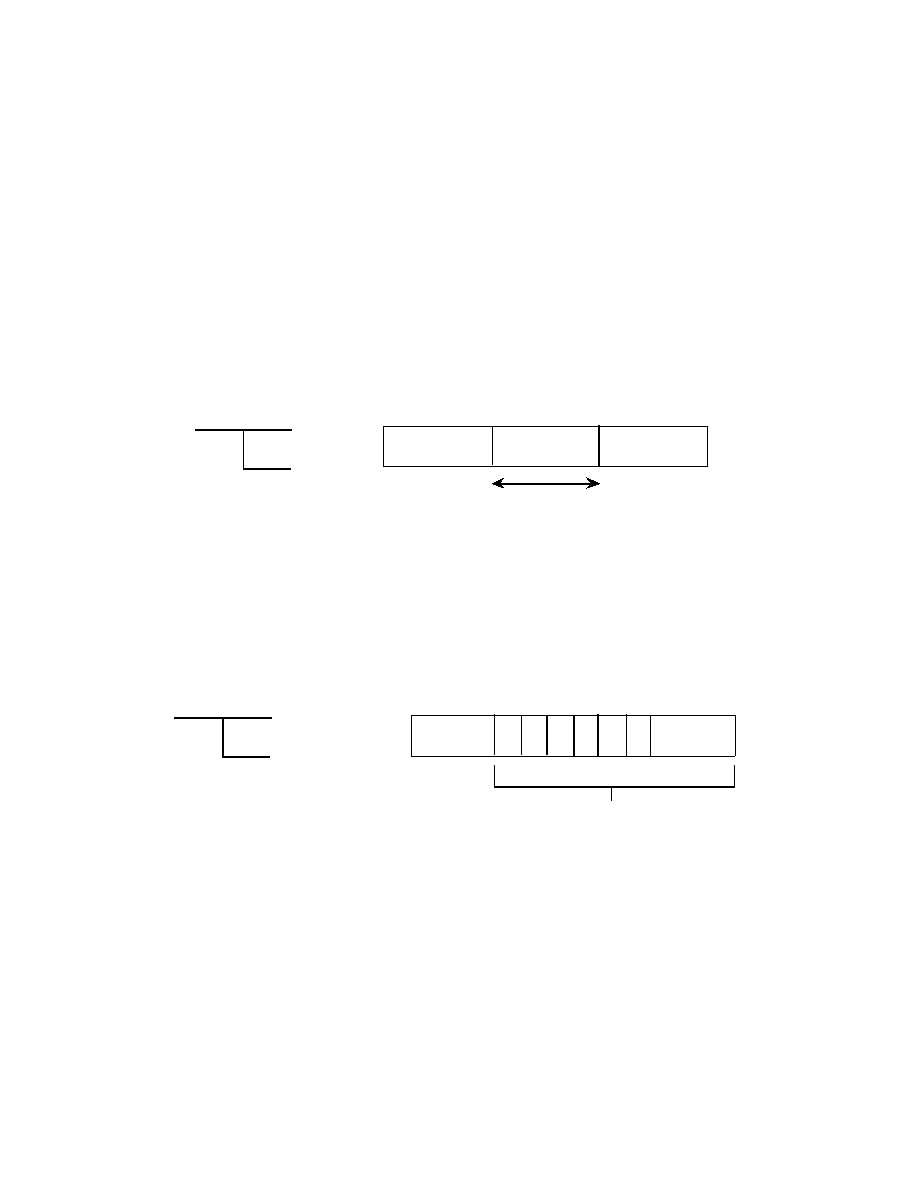

Figure 4.1 Non-interleaved candidate branches (C cannot be pre-read)
2. Interleaved branch candidates
As shown in Figure 4.2, one method of enabling branches to B and C without delay after
A is played is to interleave B and C immediately after A.
A
......
A
B (b1+b2+b3...)
C (c1+c2+c3...)
b1 c1 b2 c2 b3 c3
Stream branching
Organization of files on disk
B and C are interleaved
Note: Two branch candidate files exist: B and C.
Figure 4.2 Interleaved branch candidates (all of B and C)
3. Partially interleaved branch candidates
As shown in Figure 4.3, it is also possible to split B into B1 and B2, and C into C1 and C2
and to interleave only B1 and C1.
background image
SEGA Confidential

12
In this case, it is sufficient to interleave only parts of B and C (B1 and C1). This
technique allows a seek to B2 and C2 and enables highly independent operation.
However, the technique requires the division of files.
A
B1, C1
C2
A
B1 -- B2
C1 -- C2
B2
Stream branching
Position of files on disk
B1 and C1 are interleaved
Note: Four branch candidate files exist: B1, B2, C1, and C2.
Figure 4.3 Partially-interleaved branch candidates (parts of B and C)
background image
SEGA Confidential

Branching Playback Library User's Manual
13
5. Basic Examples
5.1 Scenario Processing
Figure 5.1 shows an example of a branching playback scenario.
BSTM1.MPG
BSTM2.MPG
BSTM3.MPG
0
1
Button A
Button B
Branch number
Button A is pressed while
BSTM1.MPG
is being played
BSTM2.MPG
is played after
BSTM1.MPG
.
Button B is pressed while
BSTM1.MPG
is being played
BSTM3.MPG
is played after
BSTM1.MPG
.
Figure 5.1 Example of a branching playback scenario
The following is a sample program that sets this scenario.
#define BSTM_MAX 3 /* Total number of branch streams(BSTM1.MPG,
BSTM2.MPG, BSTM3.MPG) */
#define BRANCH_MAX 2 /* Total number of branches (number of arrows in
Figure 5.1) */
#define KEY_MAX 2 /* Total number of stream key types */
#define A_BTN 0 /* Branch number assigned to button A */
#define B_BTN 1 /* Branch number assigned to button B */
#define BR_NUM 2 /* Number of branches per stream */
#define BSTM1_ID 0 /* Branch stream ID of BSTM1.MPG */
#define BSTM2_ID 1 /* Branch stream ID of BSTM2.MPG */
#define BSTM3_ID 2 /* Branch stream ID of BSTM3.MPG */
/* Work area for the BPL */
Sint32 work_bpl[BPL_WORK_SIZE(BSTM_MAX, BRANCH_MAX, KEY_MAX)/sizeof(Sint32)];
void setScenario(void)
{
StmKey key[KEY_MAX]; /* Area for setting a stream key */
Sint32 brtbl[BR_NUM]; /* Area for setting a destination */
Sint32 fid; /* File ID */
/* Initialization of branching playback */
BPL_Init(BSTM_MAX, BRANCH_MAX, KEY_MAX, work_bpl);
/* Setting branch stream information */
STM_KEY_CN(key + 0) = STM_KEY_CIMSK(key + 0) = STM_KEY_NONE;
STM_KEY_CN(key + 1) = STM_KEY_CIMSK(key + 1) = STM_KEY_NONE;
STM_KEY_SMMSK(key + 0) = STM_KEY_SMVAL(key + 0) = STM_SM_VIDEO;
STM_KEY_SMMSK(key + 1) = STM_KEY_SMVAL(key + 1) = STM_SM_AUDIO;
fid = GFS_NameToId("BSTM1.MPG");
BPL_SetStmInfo(BSTM1_ID, fid, KEY_MAX, key);
fid = GFS_NameToId("BSTM2.MPG");
background image
SEGA Confidential
14
BPL_SetstmInfo(BSTM2_ID, fid, KEY
_
MAX, key);
fid = GFS_NameTold("BSTM3.MPG");
BPL_SetStmInfo(BSTM3_ID, fid, KEY
_
MAX, key);
/* Set destination information */
brtbl[A_BTN] = BSTM2_ID; /* Branch to BSTM2.MPG
if
button
A
is
pressed
*/
brtbl[B_BTN] = BSTM3_ID; /* Branch to BSTM3.MPG
if
button
B
is
pressed
*/
BPL_SetBranchInfo(BSTM1_ID, BR_NUM, brtbl); /* Set the destination for
BSTM1.MPG
*/
}
background image
SEGA Confidential

Branching Playback Library User's Manual
15
5.2
Branching Playback Processing
The following is an example of a branching playback program. (Refer to Section 5.1 for
the scenario.)
Sint32 work_gfs[GFS_WORK_SIZE(BSTM_MAX*KEY_MAX)/sizeof(Sint32)];
Sint32 work_stm[STM_WORK_SIZE(GRP_MAX, BSTM_MAX*KEY_MAX)/sizeof(Sint32)];
Sint32 brno; /* Branch number */
StmHn stmtbl[KEY_MAX]; /* Stream handle table */
Sint32 bpl_stat; /* Branching playback status */
Sint32 decode_stat; /* Decoder operation status */
DecodeHn dc_hn = NULL; /* Decoder handle */
Bool chgsw = OFF; /* Branch execution switch */
Bool endflag = FALSE;
Sint32 ret;
/* Initialization of the libraries */
GFS_Init(иии); /* Initialize the File System */
STM_Init(иии); /* Initialize the Stream System */
initDecoder(); /* Initialize the decoder */
setScenario(); /* Set a scenario (see 5.1) */
/* Branching playback */
BPL_SetStart(BSTM1_ID); /* Specify a stream to begin playback*/
BPL_GetCurStm(KEY_MAX, stmtbl); /* Fetch the first branch stream */
dc_hn = createDecodeHn(stmtbl); /* Create a decoder handle */
while (endflag == FALSE) {
bpl_stat = BPL_ExecServer(chgsw); /* Execute the Branching Playback
Server */
chgsw = OFF;
STM_ExecServer(); /* Execute the stream server */
decode_stat = execDecoder(dc_hn); /* Execute the server function of
the decoder */
switch (bpl_stat) {
case BPL_SVR_COMPLETED: /* Branching playback complete status */
endflag = TRUE;
break;
case BPL_SVR_WAITSEL: /* Destination selection wait
state */
/* Get pad input (0:button A, 1:button B, negative: no input */
brno = getPadEvent();
if (brno >= 0) {
BPL_SelectBranch(brno); /* Select a destination */
}
break;
case BPL_SVR_SELECT: /* Destination determined state */
case BPL_SVR_NOBRN: /* No-destination state */
if (decode_stat != COMPLETED) { /* Decoding completion check */
break;
}
background image
SEGA Confidential

16
chgsw = ON; /* Branch execution switch on */
ret = BPL_GetNextStm(KEY_MAX, stmtbl); /* Get a destination stream */
if (ret >= 0) { /* If there is a destination */
destoroyDecodeHn(dc_hn); /* Clear the decoder handle */
dc_hn = createDecodeHn(stmtbl); /* Create a decoder handle */
}
break;
}
}
destoroyDecodeHn(dc_hn); /* Clear the decoder handle */
The BPL automatically opens and closes a stream by using the Stream System. For a
description of the decoder, refer to the applicable library manuals.
background image
SEGA Confidential

Branching Playback Library User's Manual
17
6. Data Specifications
6.1 Basic Data
1. Basic Data Types
2. Logical Constants
Logical constants are used as Boolean values:
6.2 Constants
1. Error Codes
The value of
BPL_ERR_OK
is 0. Other error codes take negative values.
2. Other
Title
Data specifications
Data
Basic data
Data Name
No.
1.0
Type
Descripton
Uint8
Unsigned 1-byte integer
Sint8
Signed 1-byte integer
Uint16
Unsigned 2-byte integer
Sint16
Signed 2-byte integer
Uint32
Unsigned 4-byte integer
Sint32
Signed 4-byte integer
Bool
Boolean 4-byte integer (logical constants are used as Boolean)
Constant
Value
Description
FALSE
TRUE
0
1
Represents the FALSE logical value.
Represents the TRUE logical value.
OFF
ON
0
1
Represents the switch off (FALSE) state.
Represents the switch on (TRUE) state.
Title
Data specifications
Data
Constant
Data Name
No.
2.0
Constant
Description
BPL_ERR_OK
Normal termination
BPL_ERR_KYOVRFLW
Too many stream keys
BPL_ERR_BROVRFLW
Too many destination settings
BPL_ERR_BSTMID
Illegal branch stream ID
BPL_ERR_BRNO
Illegal branch number
BPL_ERR_BRSPC
Destination already specified
BPL_ERR_NOKEY
No corresponding stream key set
BPL_ERR_OPNSTM
Stream open failure
Constant
Value
Description
BPL_STMKEY_MAX
6
Number of stream keys that can be set to a branch
stream.
background image
SEGA Confidential
18
7. Function Specifications
Table 7.1 shows a list of BPL functions.
Table 7.1 List of functions (1)
Function
Function Name
No.
Scenario processing
1.0
Initialize branching playback
BPL_Init
1.1
Reset branching playback
BPL_Reset
1.2
Set branch stream information
BPL_SetStmInfo
1.3
Get branch stream information
BPL_GetStmInfo
1.4
Set destination information
BPL_SetBranchInfo
1.5
Get destination information
BPL_GetBranchInfo
1.6
Branching playback-processing
2.0
Set playback start stream
BPL_SetStart
2.1
Execute Branching Playback Server
BPL_ExecServer
2.2
Select destination
BPL_SelectBranch
2.3
Get current stream
BPL_GetCurStm
2.4
Get destination stream
BPL_GetNextStm
2.5
Get stream group
BPL_GetStmGrp
2.6
background image
SEGA Confidential

Branching Playback Library User's Manual
19
7.1 Scenario Processing
[Format]
Sint32 BPL_Init(Sint32 bstmmax, Sint32 brmax, Sint32
keymax, void *work)
[Input]
bstmmax
: Total number of branch streams
brmax
:
Total number of branches
keymax
:
Total number of stream key types
work
:
Work area
[Output]
None
[Function value]
Error code
[Function]
Initializes the work area for the BPL. Clears previously set scenario information.
Execute this function before the BPL is used.
[Remarks]
(a) Determine the size of the work area from the
BPL_WORK_SIZE
(
bstmmax
,
brmax
,
keymax
) byte.
Allocate work areas at 4-byte boundaries.
Example:
Uint32 work[BPL_WORK_SIZE(bstmmax, brmax,
keymax)/sizeof(Uint32)];
(b)
When stream keys of different types are assigned to different branch
streams, the sum of the types is the value of
keymax
.
Example:
If
key1
(3 types of keys) is assigned to
bstm1
, and
key2
(4 types of keys) is assigned to
bstm2
, then
keymax
,
which is the sum of
key1
and
key2
, will be 7.
If
key1
is assigned to both
bstm1
and
bstm2
, then
keymax
, which is
key1
, will be 3.
(c)
The
BPL_Init
function does not close the stream group that is currently
used. To force an initialization of the BPL while it is being used, execute the
BPL_Reset
function.
[Format]
Sint32 BPL_Reset(void)
[Input]
None
[Output]
None
[Function value]
Error code
[Function]
Suspends access to a branch stream and resets the branching playback (closes the
stream group currently being used by the BPL and initializes all information).
Title
Data specifications
Data
Initialize branching playback
Data Name
BPL_Init
No.
1.1
Title
Data specifications
Data
Reset branching playback
Data Name
BPL_Reset
No.
1.2
background image
SEGA Confidential
20
[Format]
Sint32 BPL_SetStmInfo(Sint32 bstmid, Sint32 fid, Sint32
nkey, StmKey *keytbl)
[Input]
bstmid:
Branch stream ID
(0
bstmid
<
bstmmax
)
fid
:
File ID
nkey
:
Number of stream keys (
nkey
BPL_STMKEY_MAX
)
keytbl
:
Stream key table
[Output]
None
[Function value]
Error code
[Function]
Assigns branch stream information (information on the individual streams that
are actually read) to a branch stream.
[Remarks]
(a)
By assigning multiple stream keys to a file, the function can read channel
interleaved-data.
(b)
The maximum number of stream keys that can be assigned to a branch
stream is
BPL_STMKEY_MAX
.
The
BPL_Init
function specifies the total number of stream key types that
can be used in all streams.
[Format]
Sint32 BPL_GetStmInfo(Sint32 bstmid, Sint32 *fid, Sint32
*nkey, StmKey *keytbl)
[Input]
bstmid
:
Branch stream ID
[Output]
fid:
File ID
nkey
:
Number of stream keys (
nkey
BPL_STMKEY_MAX
)
keytbl
:
Stream key table
[Function value]
Number of destinations that are already set (an error code results if this number
is negative)
[Function]
Gets the branch stream information that is assigned to a branch stream.
Refer to the destination information-setting function (
BPL_SetBranchInfo
) for
the number of destinations.
Title
Function
specifications
Data
Set branch stream information
Data Name
BPL_SetStmInfo
No.
1.3
Title
Function
specifications
Data
Get branch stream information
Data Name
BPL_GetStmInfo
No.
1.4
background image
SEGA Confidential

Branching Playback Library User's Manual
21
[Format]
Sint32 BPL_SetBranchInfo(Sint32 bstmid, Sint32 nbranch,
Sint32 *brtbl)
[Input]
bstmid
:
Branch stream ID
nbranch
: Number of destinations
brtbl
:
Branch table
[Output]
None
[Function value]
Error code
[Function]
Assigns destination information (candidate destinations) to a branch stream.
[Remarks]
(a)
Assigns the branch stream IDs of branch candidates to the branch table.
To indicate that there are no destinations, specify
BPL_BR_NONE
as a branch table
element.
brtbl[0]
=
BSTMID_A
;
brtbl[1]
=
BPL_BR_NONE
;
/* No destinations (the end of BP) */
brtbl[2]
=
BSTMID_B
;
nbranch = 3;
A destination is specified using the
BPL_SelectBranch
function and a
branch number (a position in the branch table).
In this example, the branch processing produces the following results,
depending on the destination that is selected:
(b)
The number of streams must satisfy the following conditions:
X +Y
Z
X: The number of stream keys that are set in
bstmid
Y: Total number of destination stream keys
Z: Maximum number of streams that can be opened simultaneously (specified
using the
STM_Init
function)
[Format]
Sint32 BPL_GetBranchInfo(Sint32 bstmid,
Sint32 *nbranch, Sint32 *brtbl, Sint32 nelem)
[Input]
bstmid
:
Branch stream ID
nelem
:
Number of branch table elements
[Output]
nbranch
: Number of destinations (0 if no branch candidates)
brtbl
:
Branch table (a maximum of
nelem
branch candidates are stored from the
beginning of the table)
[Function value]
Error code
[Function]
Gets the destination information that is assigned to a branch stream.
Title
Function
specifications
Data
Set destination information
Data Name
BPL_SetBranchInfo
No.
1.5
Selected
Destination
Branch Processing
(when the branch execution switch of the server function is on)
Branch number 0
Branches to branch stream ID
BSTMID_A.
Branch number 1
Terminates the branching playback process goes into the no
destination state immediately after this branch number is
selected.
Branch number 2
Branches to branch stream
ID
BSTMID_B
.
Other
(
BPL_SelectBranch
returns the
BPL_ERR_BRNO
error
and
invalidates the selection.)
Title
Function
specifications
Data
Get destination information
Data Name
BPL_GetBranchInfo
No.
1.6
background image
SEGA Confidential

22
7.2 Branching Playback Processing
[Format]
Sint32 BPL_SetStart(Sint32 bstmid)
[Input]
bstmid
: Branch stream ID (
BPL_BR_NONE
: stops branching playback)
[Output]
None
[Function value]
Error code
[Function]
Specify a playback start stream (the branch stream at the beginning of a scenario).
To stop branching playback, specify
BPL_BR_NONE
as the branch stream ID.
[Format]
Sint32 BPL_ExecServer(Bool chgsw)
[Input]
chgsw
: Branch execution switch (ON: branch, OFF: do not branch)
[Output]
None
[Function value]
Branching playback status
[Function]
Executes the Branching Playback Server. When the branch execution switch is
ON, performs branching (switches branch streams).
(1)
Branching playback state
For branching playback states, see Section 3.3, Changing Branching Playback States.
[Format]
Sint32 BPL_SelectBranch(Sint32 brno)
[Input]
brno
: Branch number
[Output]
None
[Function value]
Error code
[Function]
Selects a destination according to a specified branch number.
[Remarks]
(a)
Specifying the switch "ON" during the execution of the
BPL_ExecServer
function results in branching (the current stream is switched with the
selected destination).
(b)
A destination must be selected even when there is only one branch candi-
date.
Constant
Description
BPL_SVR_COMPLETED
Branching playback completed.
BPL_SVR_WAITSEL
Wait for the selection of a destination.
BPL_SVR_SELECT
Destination selected.
BPL_SVR_NOBRN
No destinations.
Title
Function
specifications
Data
Select destination
Data Name
BPL_SelectBranch
No.
2.3
Title
Function
specifications
Data
Set playback start stream
Data Name
BPL_SetStart
No.
2.1
Title
Function
specifications
Data
Execute Branching Playback
Server
Data Name
BPL_ExecServer
No.
2.2
background image
SEGA Confidential

Branching Playback Library User's Manual
23
[Format]
Sint32 BPL_GetCurStm(Sint32 nelem, StmHn *stmtbl)
[Input]
nelem
:
Number of elements in the stream handle table
(nelem
BPL_STMKEY_MAX)
[Output]
stmtbl
:
Stream handle table
[Function value]
Branch stream ID (Negative ID=no corresponding branch streams)
[Function]
Gets the current stream (branch stream ID and the stream handle) that is subject
to read access.
[Remarks]
(a)
Stream handles that correspond to stream keys are set in the stream handle
table.
[Format]
Sint32 BPL_GetNextStm(Sint32 nelem, StmHn *stmtbl)
[Input]
nelem
:
Number of elements in the stream handle table
(nelem
BPL_STMKEY_MAX
)
[Output]
stmtbl
:
Stream handle table
[Function value]
Branch stream ID (Negative ID=no corresponding branch streams)
[Function]
Gets a destination stream (branch stream ID and the stream handle).
[Remarks]
(a)
Stream handles that correspond to stream keys are set in the stream handle
table.
(b)
The function value remains negative until a destination is selected (until
the
BPL_SelectBranch
function is executed).
[Format]
StmGrpHn BPL_GetStmGrp(void)
[Input]
None
[Output]
None
[Function value]
Stream group handle
[Function]
Gets the handle of the stream group that is used by the BPL.
[Remarks]
(a)
When activated, the BPL opens one stream group.
When the branching playback process is terminated, the stream group
handle becomes
NULL
.
Title
Function
specifications
Data
Get current stream
Data Name
BPL_GetCurStm
No.
2.4
Title
Function
specifications
Data
Get destination stream
Data Name
BPL_GetNextStm
No.
2.5
Title
Function
specifications
Data
Get stream group
Data Name
BPL_GetStmGrp
No.
2.6
