background image
SEGA Confidential


External
Specification
Document
Saturn
Stream System
Doc. #ST-98-031194
TM
© 1994 SEGA. All Rights Reserved.
1.0 Summary
1
1.1 Library Configuration
1
1.2 Overview of Stream System Functions
2
2.0 Definition of Terminology and Abbreviations
3
3.0 Module Configuration
5
4.0 Overview of Stream Access
6
4.1 Streams and Stream Groups
6
4.2 Stream Area
6
4.3 Stream Access Procedure
7
4.4 Resident Stream
10
4.5 Precautions when Adding or Changing
Settings During CD Play
11
5.0 Stream Access Example
12
6.0 Data Specifications
14
6.1 Data Table
14
6.2 Data Details
14
6.2.1 Stream Access Status
14
6.2.2 Transfer Gate Status
14
6.2.3 Transfer Mode
15
6.2.4 Fundamental Data
15
6.2.5 Library Handler
15
6.2.6 Stream Key
16
6.2.7 Stream Play Area
17
6.2.8 Sector Information
17
6.2.9 Error Control
17
6.2.10 Transfer Function
18
6.2.11 Call Function when CD BufferIs Full
18
6.2.12 Error Function
18
7.0 Function Table
19
8.0 Function Details
21
8.1 Initialization
21
8.2 Stream Group
21
8.3 Streams
23
8.4 Transfer Setting
26
8.5 Read Information Acquisition
29
8.6 Transfer Information Acquisition
30
8.7 Stream Server Execution
31
8.8 CD Block Operation
34
8.9 Error Handling
36
Precautionary Items Regarding Stream System
Library Ver. 0.1
37
background image
SEGA Confidential


READER CORRECTION/COMMENT SHEET
Chpt.
pg. #
Correction
Corrections:
General Information:
Your Name
Phone
Document number
Date
Document name
Questions/comments:
Keep us updated!
If you should come across any incorrect or outdated information while reading through the attached
document, or come up with any questions or comments, please let us know so that we can make the
required changes in subsequent revisions. Simply fill out all information below and return this form to
the Developer Technical Support Manager at the address below. Please make more copies of this form if
more space is needed. Thank you.
Fax:
(415) 802-3963
Attn: Manager,
Developer Technical Support
Mail:
SEGA OF AMERICA
Attn: Manager,
Developer Technical Support
275 Shoreline Dr. Ste 500
Redwood City, CA 94065
Where to send your corrections:
ST-98-031194
External Specification Document: Saturn Stream System
background image
SEGA Confidential
History of Modifications
1994-02-21
Access Image Diagram
Modification
· StmArea
Addition
· StmSct
Addition
· StmKey
Change
· STM_SetCdbufFull
Addition
· STM_OpenResi
Addition
· STM_ConnectCdbuf
Addition
· STM_MoveCdbuf
Addition
· STM_StartTrans
Addition
· STM_SetTrFad
Addition
· STM_OpenFid
Change
· STM_OpenFrange
Change
· STM_SetKey
Change
· STM_GetInfo
Change
· STM_EraseCdbuf
Change
· STM_GetSctInfo
Change
· STM_GetErrStat
Change
· The stream read program modification in accordance with the STM_OpenFid change.
· The transmission function specification change and the corresponding change to the 5. (2)
Transmission Function Example.
· Make it so that the word No. and not the byte No. are used for the data No.
background image
SEGA Confidential
Stream System Review and Other Items of Study
1. Function Access from Remaining CD Buffer Capacity
Add the function STM_SetCdbufFull.
This function allows the registered function to be accessed when the capacity remaining in the CD
buffer is less than the set value.
2. Resident Stream Handling
Add the functions STM_OpenResi and STM_SetTrFad.
Normally, the data that is read into the CD buffer is transmitted to the host area when the play
position reaches the transmission start FAD. Stream data that has been opened by STM_OpenResi,
however, is resident in the CD buffer even after being transmitted to the host area. This stream is
called a resident stream. When the transmission start FAD is reset (STM_SetTrFad) after residence,
data is again transmitted when the play position reaches the set transmission start FAD.
This function can handle the steam as a SIMM file or SCSI file in the same way as a file on a CD is
normally handled. In this case, however, the stream is not resident on the CD buffer, so data is read
from the SIMM or SCSI each time the stream is accessed.
For details, refer to External Specifications, Section 4.4 Resident Stream.
3. Acquiring Actual Data Size After Data Transmission Has Begun
For the transmission function, there is a high possibility that the actual data size acquisition func-
tions (STM_SctToByte and STM_ByteToSct) will be used, so add the function STM_StartTrans.
In addition, delete the transmission address from the transmission function argument and then
make acquisition as the function value of STM_StartTrans. The actual data size acquisition function
is to be used before STM_StartTrans is accessed.
4. Setting and Acquiring the Data No.
For the stream system, the word No. and not the byte No. is to be used for the data number.
5. Function Arguments
Changes were made for functions with many arguments so that performance does not degrade
when a struct is made into an argument.
background image
SEGA Confidential

1.0
Summary
This document is the external specifications for a library that will allow streams
(interleaved files, etc.) on CD to be efficiently read
1.1
Library Configuration

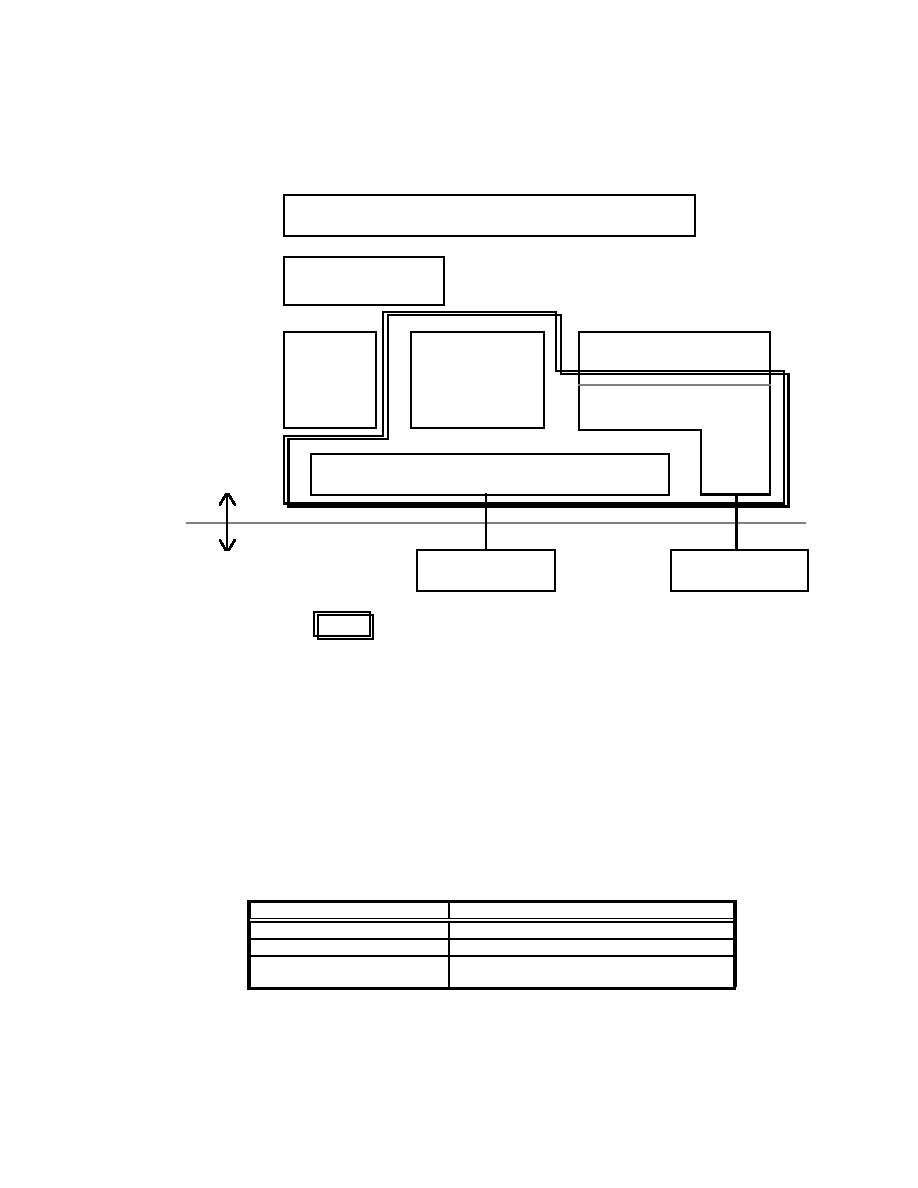

The library configuration for CD-related items is shown in Figure 1.1.
Application
Split Moving screen Play Library
MPEG
Library
Stream System
Library
File System
Libaray
CD Communications Interface
CD Block
SIMM, SCSI Files
Software
H a r d w a r e
Figure 1.1 CD Related Library Configuration
External Specification Document:
Saturn Stream System
1
background image
SEGA Confidential

1.2
Overview of Stream System Functions
(1)
Supports CD-ROM XA Level File Access
· Supports access to mode 2 sector that used a sub header. (Access to mode 1
sector is also possible.)
(2)
Supports a Variety of Transfer Methods
· The stream data on CD can be transferred to the main CPU area.
· Registering functions makes it possible to process data while reading stream
data from the CD.
· The stream data read into the CD buffer can be freely manipulated.
(3)
Supports Access By File ID
· File access is allowed via the file ID (sequence number in the directory)
using the directory management function similar to the file system.
:

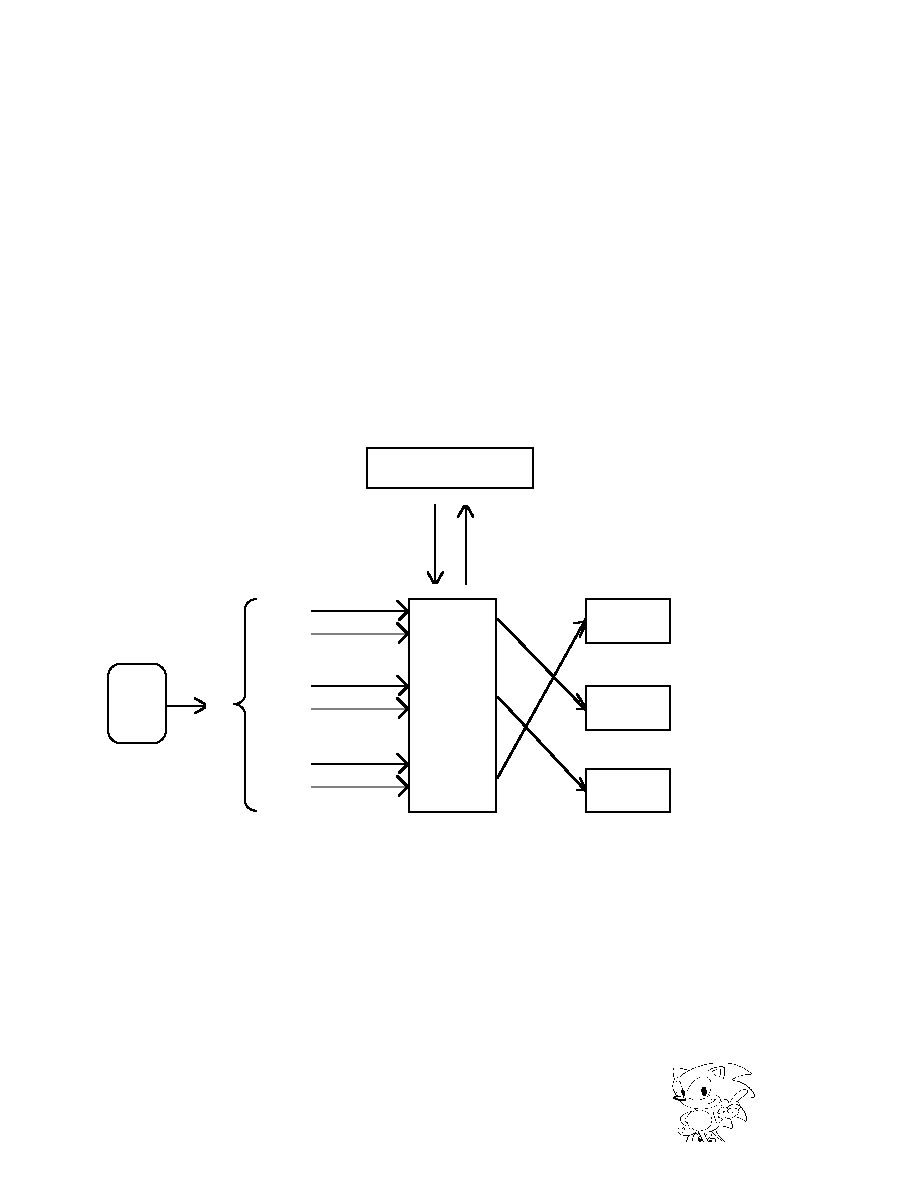

Data1
Data2
:
Audio2
:
Video2
Video1
Audio1
Application
Stream Selection Conditions
Transfer Destination Setting
Stream Data Acquisition
CD
Buffer 1
Buffer 2
Stream
System
Multiple
Interleaved
Streams
Transfer
Function
Stream Selection
(Header, Sub Header)
Data Transfer and Conversion
Transfer Control
Output Destination
Control
Figure 1.2 Overview Diagram of Stream System
2
background image
SEGA Confidential
2.0Definition of Terminology and Abbreviations
Table 2.1 Terminology Chart
CD Drive
CD Buffer
Main CPU Area
R e a d
Stream Access
Figure 2.1 Stream System Data Flow
W o r d
M e a n i n g
Stream
The flow of logically connected data that has been classified via a
sub header.
Stream Key
The key when a stream is read into a CD buffer. The stream key
comes from the frame address range, file number (FN), channel
number (CN), sub mode (SM), and coding information (CI). With
respect to the sub mode (SM) and coding information (CI), the
mask pattern comparison pattern can be specified. In this case the
sector that is
(
{ }
SM
CI
& mask pattern == comparison pattern)
is the sector that is read.
Stream Group
A collection of streams.
End Stream
The stream in a stream group that is the last stream to be played.
Loop Start Stream
The return stream after a stream group's end stream has been
played back.
Transfer Start FAD
The pick up position for starting the transfer of data read into the
CD buffer to the program buffer, etc.
Transfer Gate
The gate when data read into the CD buffer is transferred to the
program buffer, etc. Closing this gate allows stream data to be
accumulated in the CD buffer.
External Specification Document:
Saturn Stream System
3
background image
SEGA Confidential
Table 2.2 Abbreviation Chart
· For other terminology, use the meanings given for the CD communications
interface and the file system.
· For details regarding the directory, refer to File System (GFS) Directory.
Abbreviation
Meaning
GFS
general file system
STM
stream
StmGrpHn
stream group handle
StmHn
stream handle
TrMode
transfer mode
bn
buffer number
ci
coding information
cn
channel number
fad
frame address
fid
file ID
fn
file number
fname
file name
loopstm
loop stream
plyarea
play area
sinfo
sector information
sm
sub mode
sn
sector number
stype
sector type
4
background image
SEGA Confidential

3.0
Module Configuration

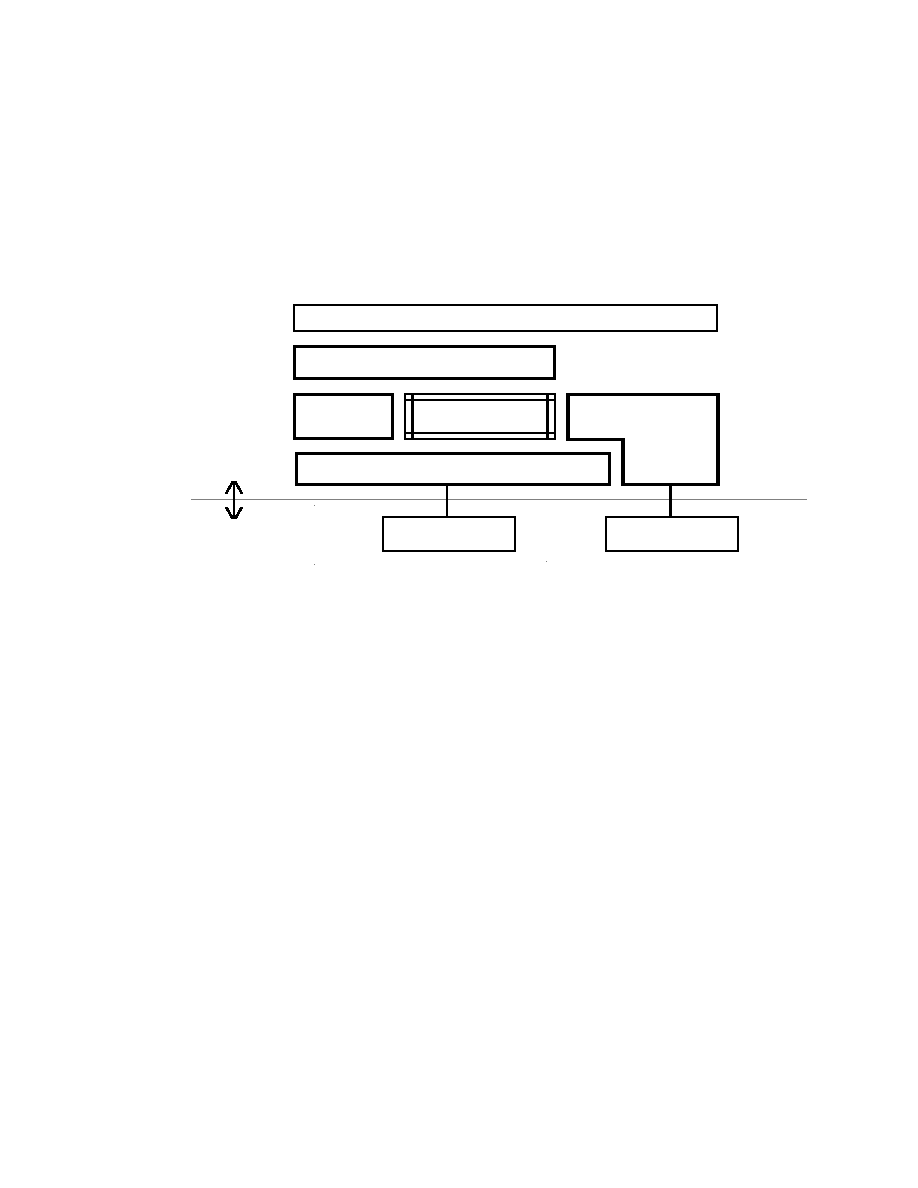

Following is the module configuration as seen from the application.
Application
Branch Movie Screen
Playback Library
MPEG
Library
Stream
System
File System
File System
Bottom Module
CD Communications Interface
Software
Hardware
CD Block
SIMM, SCSI Files
shows modules required for use with stream system.
Figure 3.1 Module Configuration Diagram
The file system library and CD communications interface library are necessary to use
the stream system library.
Each library uses the following global symbols. The application program must not
use these symbols.
Table 3.1 Symbol Name for Each Library
Abbreviation
Meaning
Stream system
ST*_*
File system
GF*_*, GP*_*
CD communications
interface
CD*_*
External Specification Document:
Saturn Stream System
5
background image
SEGA Confidential
4.0
Overview of Stream
Access
4.1
Streams and Stream Groups
(1)
Stream
Sector groups with the same sub headers (FN, CN, SM, CI) and that undergo basi-
cally the same processing are called a stream. These sectors do not need to be physi-
cally contiguous.
(2)
Stream Group
Interleaving and recording multiple streams as is done for audio and visual allows
related streams to be synchronized and accessed at the same time. A collection of
such related streams is called a stream group.
4.2
Stream Area
Stream areas are stipulated using the following methods.
(1)
Opening the Stream via File
The file ID can be specified to open the stream (STM_OpenFid). In this case, the
stream area is from the start frame address in the file to the end frame address.
The end frame address is actually calculated from the total number of sectors in the
start frame address and file. In the case of interleaved files, the end frame address is
calculated as having been recorded as a defined interleave factor (set interleave).
(2)
Opening the Stream by Directly Specifying the Frame Address Area
The user can open the stream by directly specifying the frame address area
(STM_OpenFrange). In this case, the specified area becomes the stream area.
The frame address area specifies the first frame address and physical sector number.
6
background image
SEGA Confidential

4.3
Stream Access Procedure
The following procedure is used to access streams.

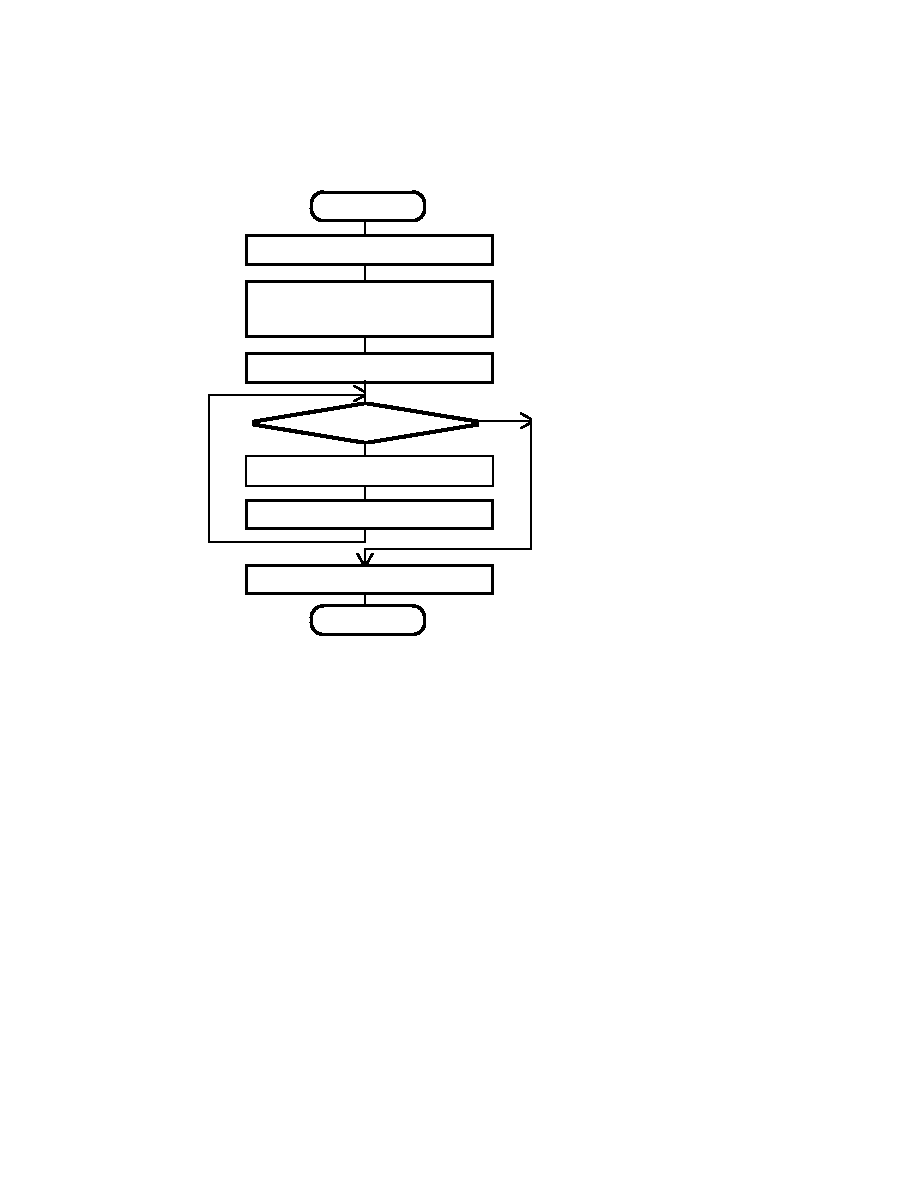

Start
Open Stream Group
Specify Stream Key
and Open Stream
Processing Finished?
Set Transfer Destination
and Transfer Function
Execute User Fixed Processing
Repeatedly Call Up Server Function
Close Stream Group
End
Corresponding Function
STM_OpenGrp
STM_OpenFid
STM_OpenFrange
STM_SetTrBuf, STM_SetTrFunc
STM_ExecServer
STM_CloseGrp
Yes
Figure 4.1 Stream Access Procedure
External Specification Document:
Saturn Stream System
7
background image
SEGA Confidential

The stream access image is shown below.

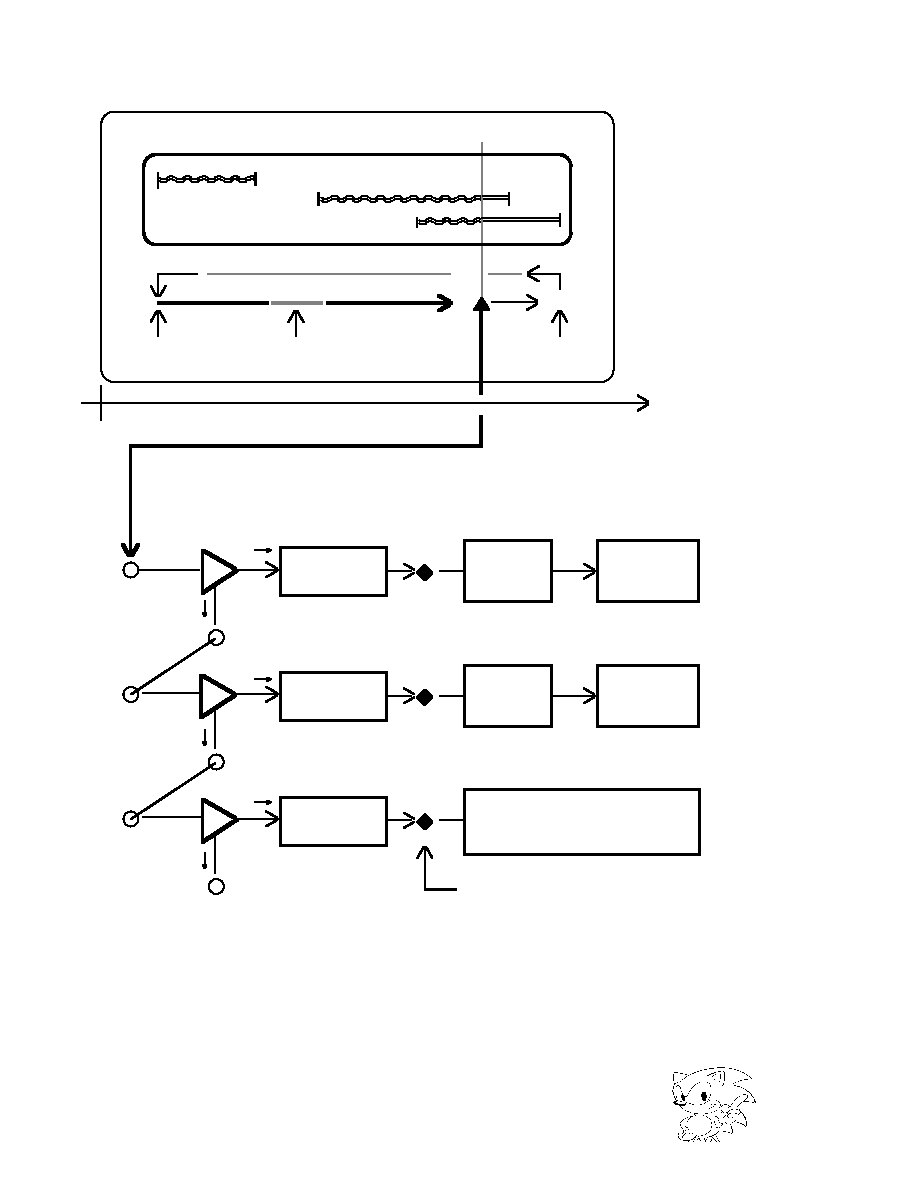

Figure 4.2 Overview of Stream
Access
0
Current Play Position
Stream A
Stream B
Stream C
Play
Play
(a) Play Start
(b) Seek
(c) Loop
FAD
(Time)
(d) Compression
CD Buffer
(e) Data Transfer
Transfer
Destination
Yes
Yes
Yes
No
No
No
Buffer
Block A
DMA, etc.
Program
Buffer
Buffer
Block B
Transfer
Destination
Device
User
Registration
Transfer
Function
(f)
(g)
Buffer
Block C
User Proprietary
Buffer Management
(h) Transfer Gate
Delete
8
background image
SEGA Confidential

(a)
Play Start
Of the streams in the stream group, the start FAD begins playing from stream A,
which is the front most stream.
(b)
Seek
When the playing stream has finished, the pickup moves to the start position of the
next stream (stream B) and begins playing.
(c)
Loop
When the last stream (stream C) has finished playing, the pickup moves to the start
position of the loop start stream (the default is the front most stream) and begins
playing.
(d)
Filter and Buffer Block
Buffer blocks are allotted one-to-one with the streams.
Sector data that meets the stream key conditions is stored in a buffer block. Sector
data that does not meet the key conditions is sent to the next filter.
(e)
Data Transfer
When server functions are called up, the transfer start position and current play
position that is set for each stream is compared, and if there is a stream that has
reached the transfer start position, there will be an attemp to transfer data to the
selected transfer area one round at a time.
If the transfer register or DMA come in use during the transfer, the server function
will end at that time, and the next test transfer will start from the next stream.
(f)
User Registration Transfer Function
Registering the transfer function allows data to be transferred while it is being pro-
cessed, such as the decompression of compressed data.
(g)
User Proprietary Buffer Management
When the transfer area and transfer function are not specified, the application pro-
gram itself can manage the CD buffer data.
(h)
Transfer Gate
Closing and opening the transfer gate temporarily stops the stream flow and then
allows it to flow again. When the transfer gate is closed, the stream data is accumu-
lated in the CD buffer.
External Specification Document:
Saturn Stream System
9
background image
SEGA Confidential

4.4
Resident Stream
When relatively short streams need to be transferred repeatedly, they can be opened
as resident streams (STM-OpenResi). Using resident streams allows data to be resi-
dent in the CD buffer without requiring the same data to be repeatedly read from
the CD.
(1)
Reading Resident Streams
Files specified in resident streams are only read into the CD buffer once. Data that is
accessed repeatedly by returning to the loop start stream is not read into the CD
buffer. Therefore, during the first stream access, play must be started from before the
resident stream file area.
When the resident stream is opened during stream access and the play position has
passed the resident stream area, care must be taken that the data is not read into the
CD buffer.
0
Resident Stream A
Stream B
Stream C
FAD
First Time
Second Time On
Not Read After First Time

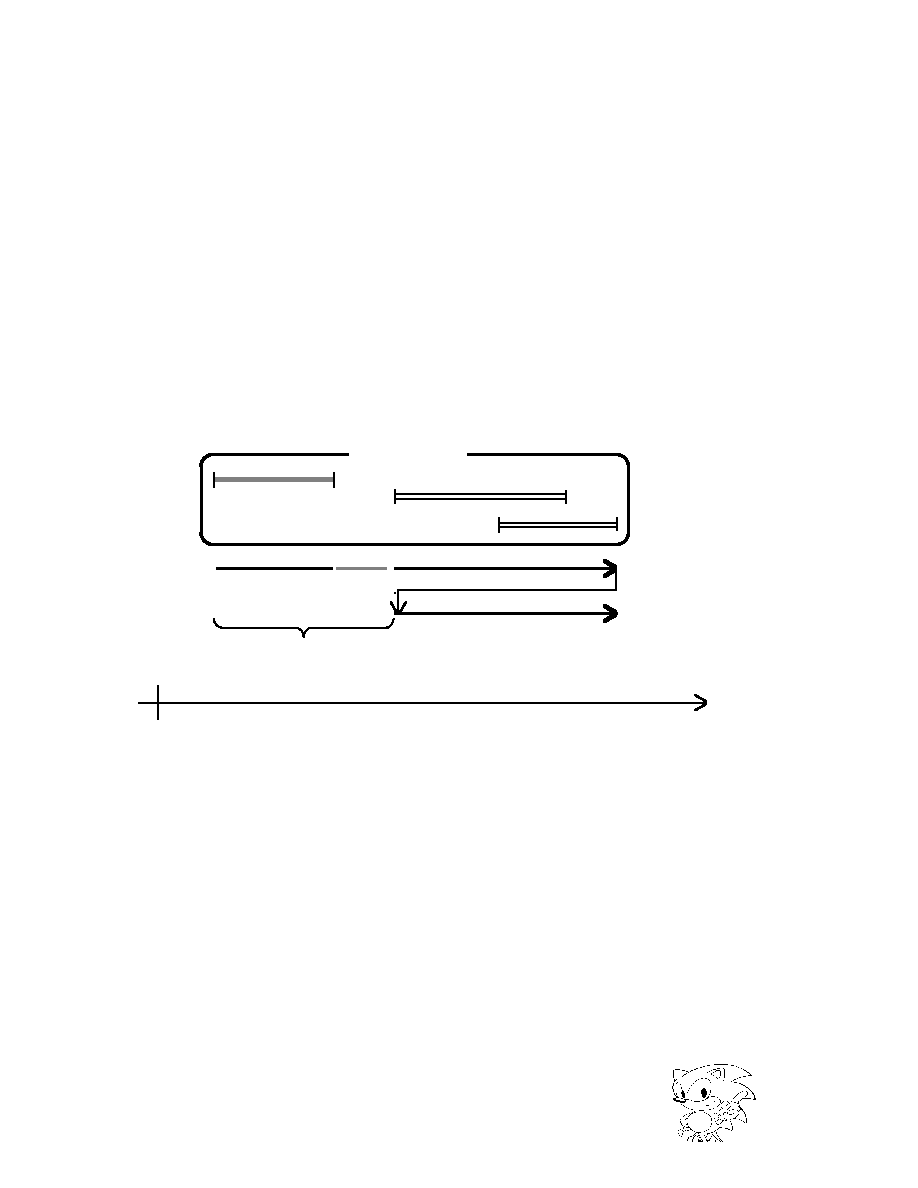

Stream Group
Figure 4.3 Resident Stream Read
(2)
Resident Stream Transfer Start Frame Address
Once a resident stream has been read into the CD buffer, the transfer can be per-
formed using optional timing. This timing is set using the transfer start frame ad-
dress for the resident stream (STM_SetTrFad).
According to the normal stream access, the play position advances, and when it
passes the set transfer start frame address, the stream data that is resident gets
transferred.
10
background image
SEGA Confidential

Also, for resident streams, the stream data is not erased from the CD buffer even
after being transferred to the host area.
(3)
Using SIMM Files and SCSI Files (During Debugging)
It is possible to use SIMM files and SCSI files as resident streams only. When the
specified file is a SIMM file or a SCSI file, the data can be read at each access without
being resident in the CD buffer.
4.5
Precautions when Adding or Changing Settings During CD Play
In the stream system, the settings, such as the stream key, can be dynamically
changed during CD play. However, after processing has been assigned to the CD
block the change will be delayed until the setting contents become valid.

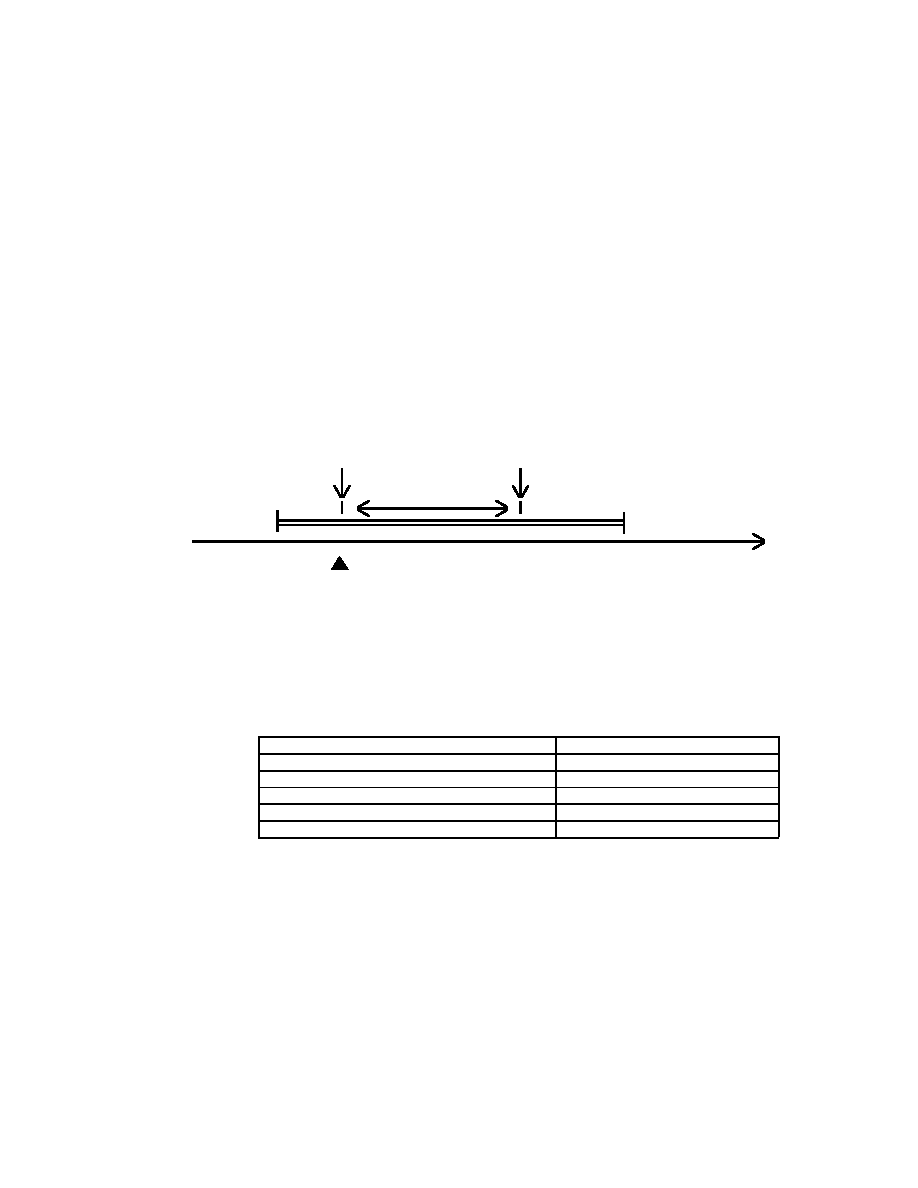

For this reason, the following functions must be initiated ten sectors or more before
the target position.
Function Initiated
Set Coordinate Position
10 Sectors or More
Stream
FAD
Current Play Position
Figure 4.4 Function Initiation Timing
(1)
Functions that Are Delayed Until the Settings Are Valid
T able 4.1 Functions with Corresponding Delays
Stream opened by file ID
STM_OpenFid
Stream opened by play area
STM_OpenFrange
Resident stream open
STM_OpenResi
Stream close
STM_Close
Stream key setting
STM_SetKey
Filter and CD buffer block connection
STM_ConnectCdbuf
External Specification Document:
Saturn Stream System
11
background image
SEGA Confidential

5.0
Stream Access Example
(1)
Stream Read
Read the three streams A, B, and C into a_buf, b_buf, and c_buf respectively.
/ * f i l e I D a c q u i s i t i o n
* /
a_id = GFS_NameTold(...);
.
.
.
abc_grp = STM_OpenGrp();
/* stream group open
*/
/* stream key setting
/*
STM_Key_CN(&key) = STM_CN_NONE;
/* channel No. */
STM_KEY_CICMP(&key) = STM_KEY_CIVAL(&key) = STM_CI_NONE; /* coding INF */
GfsFid
a_id, b_id, C_id;
/* file ID
*/
StmGrpHn
abc_grp;
/* stream group handler
*/
StmHn
a_stm, b_stm, c_stm;
/* stream handler
*/
StmKey
key;
/* stream key
*/
Uint16
a_buf[ABUF_SIZE], b_buf[BUFSIZE], c_buf[C_BUFSIZE];
/* transfer area
*/
GFS_Init(...);
/* file system initialization
*/
STM_Init()
/* stream system initialization
*/
/* stream open by file ID
*/
STM_KEY,SMCMP(&key) =
STM_KEY_SMAVAL(&key)
= STM_SM_VIDEO; /* video
stream
*/
a_stm = STM_OpenFid(abc_grp, a_id, &key);
/* stream A */
STM_KEY_SMCMP(&key) =
STM_KEY_SMVAL(&key)
= STM_SM_AUDIO; /* open
stream
*/
b_stm = STM_OpenFid(abc_grp, b_id, &key);
/* stream B */
STM_KEY_SMCMP(&key) =
STM_KEY_SMVAL(&key)
= STM_SM_DATA; /* data stream */
c_stm = STM_OpenFid(abc_grp, c_id, &key);
/* stream C */
/* transfer area setting */
STM_SetTrBuf(a_stm, a_buf, A_BUFSIZE);
STM_SetTrBuf(b_stm, b_buf, B_BUFSIZE);
STM_SetTrBuf(c_stm, c_buf, C_BUFSIZE);
STM_SetExecGrp(abc_grp);
/* actual group setting
*/
/* stream access */
while (1) {
if (STM_ExecServer() == STM_EXEC_COMPLETED) {
break;
/* stream access end
*/
}
user();
/* user processing
*/
}
STM_CloseGrp(abc_grp);
/* stream group close
*/
12
background image
SEGA Confidential

(2)
Transfer Function Setting
For program (1), make the following changes when using the function
"decodeFunc" to transfer stream B's data while it is being decompressed.
(a)
Change the underlined STM_SetTrBuf to STM_SetTrFunc.
STM_SetTrFunc(b_stm, decodeFunc, readBuf);
This change makes the decodeFunc operate every time the server function
STM_ExecServer is called.
(b)
The "decodeFunc" becomes as shown below:
Uint16readBuf[READBUF_SIZE];
Sint32 decodeFunc(void *obj, StmHn stm, Sint32 nsct)
for (i = 0; i < nword; i += read_len) {
buffer += sub_func(src, adlt, buffer, &read_len);
/* Returns decompressed */
word count
src += read_len * adlt;
}
return (nsct);
/* Return transfer
*/
sector count
}
(c)
If data transfer has not ended when decodeFunc ends, (-1) must be returned.
(d)
Transfer must be done in sector units.
Sint32
i;
Sint32
read_len;
/* Word number transferred by
sub_func.
*/
Sint32
nword:
/* Transfer word number
*/
Uint16
*src;
/* Transfer address
*/
Sint32
adlt;
/* Part of address changed every
one-word transfer
*/
/*
(word
unit)
*/
Uint16
*buffer;
/* Transfer area
*/
nword = STM_SctToWord(stm, nsct)
/* Change from sector number to
word number.
*/
/* Call STM_SctToWord before
start transfer.
*/
src = STM_StartTrans(stm, &adlt);
/* Start transfer.
*/
buffer = (Uint16 *)obj;
/* The STM_SetTrFunc's No.3
argument crosses over to the obj.
*/
External Specification Document:
Saturn Stream System
13
background image
SEGA Confidential
6.0
Data Specifications
The stream system data specifications are listed below.
6.1
Data Table
The stream system data is shown in Table 6.1.
Table 6.1 Data Table
6.2
Data Details
6.2.1
Stream Access Status
Table 6.2 Stream Access Status
When the stream cannot be accessed under the following conditions, the constant
becomes STM_EXEC_WAIT.
Table 6.3 Conditions that Become T
ransfer Wait
6.2.2
Transfer Gate Status
Data
Data Name
No.
Stream Access Status
StmAcStat
1.0
Transfer Gate Status
StmGate
2.0
Transfer Mode
StmTrMode
3.0
Fundamental Data
4.0
Library Handler
StmGrpHn, StmHn
5.0
Stream Key
StmKey
6.0
Stream Play Area
StmFrange
7.0
Sector Information
StmSct
8.0
Error Control
StmErr
9.0
Transfer Function
StmTrfunc
10.0
Call Function when CD Buffer Full
StmFullfunc
11.0
Error Function
StmErrfunc
12.0
14
Title
Data
Data Name
No.
Data Specifications
Transfer Gate Status
StmGate
2.0
Transfer Gate
Condition
Opening
·When the transfer area is full.
·When the empty area in the CD buffer disappears before
transfer start FAD is reached.
Closing
·When the stream read has ended.
·When the CD buffer is full.
Constant Name
Stream Access Status
STM_EXEC_COMPLETED
Access completed
STM_EXEC_PAUSE
Access pause
STM_EXEC_DOING
Accessing
STM_EXEC_WAIT
Transfer wait
Title
Data Specifications
Data
Stream Access Status
Data Name
StmAcStat
No.
1.0
background image
SEGA Confidential


Table 6.4
Transfer Gate Status
· The default is STM_GATE_OPEN.
6.2.3
Transfer Mode
T able 6.5
Transfer Mode
· The default is STM_TR_SCU.
6.2.4
Fundamental Data
Table 6.6
Fundamental Data
6.2.5
Library Handler
External Specification Document:
Saturn Stream System
15
Constant Name
Transfer Gate Status
STM_GATE_OPEN
Open status
STM_GATE_CLOSE
Closed status
Constant Name
Transfer Method
Load on CPU
STM_TR_SCU
SCU DMA
If the transfer destination is on B
bus the CPU is working completely
independently.
STM_TR_BDMA0
DMA burst channel 0
CPU is stopped.
STM_TR_BDMA1
DMA burst channel 1
CPU is stopped.
STM_TR_SDMA0
DMA cycle steal channel 0
Lower CPU processing capacity.
STM_TR_SDMA1
DMA cycle steal channel 1
Lower CPU processing capacity.
STM_TR_CPU
Software
The CPU is occupied but
interruption processing is
possible.
Title
Data
Data Name
No.
Data Specifications
Transfer Mode
StmTrMode
3.0
Type Name
Explanation
Uint8
Uncoded 1-byte integer
Sint8
Coded 1-byte integer
Uint16
Uncoded 2-byte integer
Sint16
Coded 2-byte integer
Uint32
Uncoded 4-byte integer
Sint32
Coded 4-byte integer
Bool
Logic type. Takes the following values:
False
True
Title
Data
Data Name
No.
Data Specifications
Fundamental Data
4.0
Title
Data
Data Name
No.
Data Specifications
Library Handler
StmGrpHn, StmHn
5.0
background image
SEGA Confidential

16
Table 6.7 Library Handler
Type Name
Explanation
StmGrpHn
Stream group handler
StmHn
Stream handler
6 . 2 . 6
Stream Key
Title
Data
Data Name
No.
Data Specifications
Stream Key (1/2)
StmKey
6.0
(1)
Data Definitions
typedef
struct {
Sint16
fn;
/* File No.
*/
Sint16
cn;
/* Channel No.
*/
Sint16
smmsk;
/* Sum mode mask pattern
*/
Sint16
smval;
/* Sub mode comparison value
*/
Sint16
cimsk;
/* Coding information mask pattern
*/
Sint16
cival;
/* Coding information comparison value
*/
} StmKey;
(2)
Access Macro
#define
STM_KEY_FN(stmkey)
((stmkey)->fn)
#define
STM_KEY_CN(stmkey)
((stmkey)->cn)
#define
STM_KEY_SMMSK(stmkey)
((stmkey)->smmsk)
#define
STM_KEY_SMVAL(stmkey)
((stmkey)->smval)
#define
STM_KEY_CIMSK(stmkey)
((stmkey)->cimsk)
#define
STM-KEY-CIVAL(stmkey)
((stmkey)->cival)
(3)
Constant
(a)
File No.
STM_FN_NONE No file No. is specified.
(b)
Channel No.
STM_CN_NONE No channel No. is specified.
Title
Data
Data Name
No.
Data Specifications
Stream Key (2/2)
StmKey
6.0
(c)
Sub Mode
The sector that is sector sub mode & smmsk == smval is read.
Table 6.8 Constants for Sub Mode Specification
Constant Name
Type of Sector Read
STM_SM_AUDIO
Audio sector
STM_SM_VIDEO
Video sector
STM_SM_DATA
Data sector
STM_SM_NONE
No specification
(d)
Coding Information
The sector that is coding information & cimsk == cival is read.
background image
SEGA Confidential

External Specification Document:
Saturn Stream System
17
STM_CI_NONE Coding information is not specified.
6 . 2 . 7
Stream Play Area
Title
Data
Data Name
No.
Data Specification
Stream Play Area
StmFrange
7.0
(1)
Data Definition
typedef
struct {
Sitn32
sfad;
/* Play start FAD
*/
Sitn32
fasnum;
/* Play sector No.
*/
} StmFrange:
(2)
Access Macro
#define
STM_AREA_SFAD(plyarea)
((plyarea)->sfad)
#define
STM_AREA_FASNUM(plyarea)
((plyarea)->fasnum)
(3)
Constant
Table 6.9 Constants for Play Area Specification
Constant Name
Sector Position
STM_FAD_CDTOP
Disk beginning FAD
STM_FAD_CDEND
Sector count when read to end of disk
6 . 2 . 8
Sector Information
Title
Data
Data Name
No.
Data Specifications
Sector Information
StmSct
8.0
(1)
Data Definition
typedef
struct {
Sint32
fad;
/* Frame address
Sint32
fn;
/* File No.
*/
Sint32
cn;
/* Channel No.
*/
Uint8
sm;
/* Sub mode
*/
Uint8
ci;
/* Coding information
*/
} StmSct;
(2)
Access Macro
#define
STM_SCT_FAD(sct)
((sct)->fad)
#define
STM_SCT_FN(sct)
((sct)->fn)
#define
STM_SCT_CN(sct)
((sct)->cn)
#define
STM_SCT_SM(sct)
((sct)->sm)
#define
STM_SCT_CI(sct)
((sct)->ci)
6 . 2 . 9
Error Control
Title
Data
Data Name
No.
Data Specifications
Error Control
StmErr
9.0
background image
SEGA Confidential

(1)
Data Definition
typedef
struct {
Sint32
code;
/* Error code
*/
Sint32
where;
/* Error occurrence location
*/
StmErrFunc
func
/* Call function when error occurs.
*/
Void
*obj;
/* Call function's first argument
*/
} StmErr;
(2)
Access Macro
#define
STM_ERR_CODE(err)
((err)->code)
#define
STM_ERR_WHERE(err)
((err)->where)
#define
STM_ERR_FUNC(err)
((err)->func)
#define
STM_ERR_OBJ(err)
((err)->obj)
6 . 2 . 1 0 Transfer Function
Title
Data
Data Name
No.
Data Specifications
Transfer Function
StmTrfunc
10.0
[Format]
Sint32
(*StmTrFunc)(void *obj, StmHn stm, Sint32 nsct)
[Input]
obj
:Registration object
stm
:Stream
nsct
:Sector No.
[Output]
None
6 . 2 . 1 1 Call Function when CD Buffer Is Full
Title
Data
Data Name
No.
Data Specifications
Call Function when CD Buffer Is Full
StmFullfunc
11.0
[Format]
void
(*StmFullFunc)(void *obj)
[Input]
obj
:Registration object
[Output]
None
6 . 2 . 1 2 Error Function
Title
Data
Data Name
No.
Data Specifications
Error Function
StmErrfunc
12.0
[Format]
void
(*StmErrFunc) (void *obj)
[Input]
obj
:Registration object
[Output]
None
18
background image
SEGA Confidential

7.0
Function Table
A list of the functions found in the stream system is given in Table 7.1.
Table 7.1 Function Table (1)
Function
Function Name
No.
Initialization
1.0
Stream system initialization
STM_Init
1.1
Stream Group
2.0
Stream group open
STM_OpenGrp
2.1
Stream group close
STM_CloseGrp
2.2
Stream count acquisition
STM_GetStmNum
2.3
Stream handler acquisition
STM_GetStmHndl
2.4
Call function registration when CD buffer is full
STM_SetCdbufFull
2.5
Stream
3.0
Stream open using file ID
STM_OpenFid
3.1
Stream open using play area
STM_OpenFrange
3.2
Resident stream open
STM_OpenResi
3.3
Stream close
STM_Close
3.4
Stream key setting
STM_SetKey
3.5
Stream information acquisition
STM_GetInfo
3.6
Change from sector count to word count
STM_SctToWord
3.7
Change from word count to sector count
STM_WordToSct
3.8
Transfer Setting
4.0
Transfer area setting
STM_SetTrBuf
4.1
Transfer function setting
STM_SetTrFunc
4.2
Transfer start in transfer function
STM_StartTrans
4.3
Transfer gate open and close
STM_SetTrGate
4.4
Setting maximum transfer sector count
STM_SetTrPara
4.5
Setting transfer start FAD
STM_SetTrFad
4.6
Setting transfer mode
STM_SetTrMode
4.7
Transfer area reset
STM_ResetTrBuf
4.8
Read Information Acquisition
5.0
CD buffer block's sector count acquisition
STM_GetNumCdbuf
5.1
Read sector information acquisition
STM_GetSctInfo
5.2
Transfer Information Acquisition
6.0
Transfer area's data count acquisition
STM_GetLenTrBuf
6.1
Transfer area full check
STM_IsTrBufFull
6.2
Stream Server Execution
7.0
Server execution group specification
STM_SetExecGrp
7.1
Server execution
STM_ExecServer
7.2
Play position setting
STM_MovePickup
7.3
Loop start stream specification
STM_SetLoop
7.4
Execution status acquisition
STM_GetExecStat
7.5
Stream access end check
STM_IsComplete
7.6
Stream data transfer
STM_ExecTrans
7.7
External Specification Document:
Saturn Stream System
19
background image
SEGA Confidential

Table 7.1 Function Table (2)
Function
Function Name
No.
CD Block Operation
8.0
Filter and CD buffer block connection
STM_ConnectCdbuf
8.1
CD buffer block data move
STM_MoveCdbuf
8.2
CD buffer block data erase
STM_EraseCdbuf
8.3
Error Handling
9.0
Registration of call function when error occurs
STM_SetErrFunc
9.1
Error status acquisition
STM_GetErrStat
9.2
20
background image
SEGA Confidential

External Specification Document:
Saturn Stream System
21
8.0
Function Details
8 . 1
Initialization
Title
Function
Function Name
No.
Function Specifications
Stream System Initialization
STM_Init
1.1
[Format]
Bool
STM_Init(void)
[Input]
None
[Output]
None
[Function Value]
Initialization can normally be done:
TRUE
Initialization cannot normally be done: FALSE
[Function]
Conduct initialization for using the stream system immediately after the
program boot.
[Remarks]
(a)
Must be performed immediately after GFS_Init.
8 . 2
Stream Group
Title
Function
Function Name
No.
Function Specifications
Stream Group Open
STM_OpenGrp
2.1
[Format]
StmGrpHn
STM_OpenGrp(void)
[Input]
None
[Output]
None
[Function Value]
Stream group handler
NULL when the stream group could not be opened.
[Function]
Opens the stream group.
Title
Function
Function Name
No.
Function Specifications
Stream Group Close
STM_CloseGrp
2.2
[Format]
void
STM_CloseGrp(StmGrpHn grp)
[Input]
grp
:Stream group handler
[Output]
None
[Function Value]
None
[Function]
Closes the stream group.
Title
Function
Function Name
No.
Function Specifications
Stream No. Acquisition
STM_GetStmNum
2.3
[Format]
Sint32
STM_GetStmNum(StmGrpHn grp)
[Input]
grp
:Stream group handler
[Output]
None
[Function Value]
Number of streams in the stream group.
[Function]
Acquires the number of streams in the specified stream group.
background image
SEGA Confidential

Title
Function
Function Name
No.
Function Specifications
Stream Handler Acquisition
STM_GetStmHndl
2.4
[Format
StmHn
STM_GetStmHndl(StmGrpHn grp, Sint32 nstm)
[Input]
grp
:Stream group handler
nstm
:Play sequence No. (0 <= nstm < STM_GetStmNum)
[Output]
None
[Function Value]
Specified play sequence stream handler.
NULL when the pertinent stream does not exist.
[Function]
Acquires the handler for the streams in the specified stream group.
[Remarks]
(a)
When four streams are in the same stream group as shown below, the play
sequence Nos. will be in the order of streams A, B, C, and D.

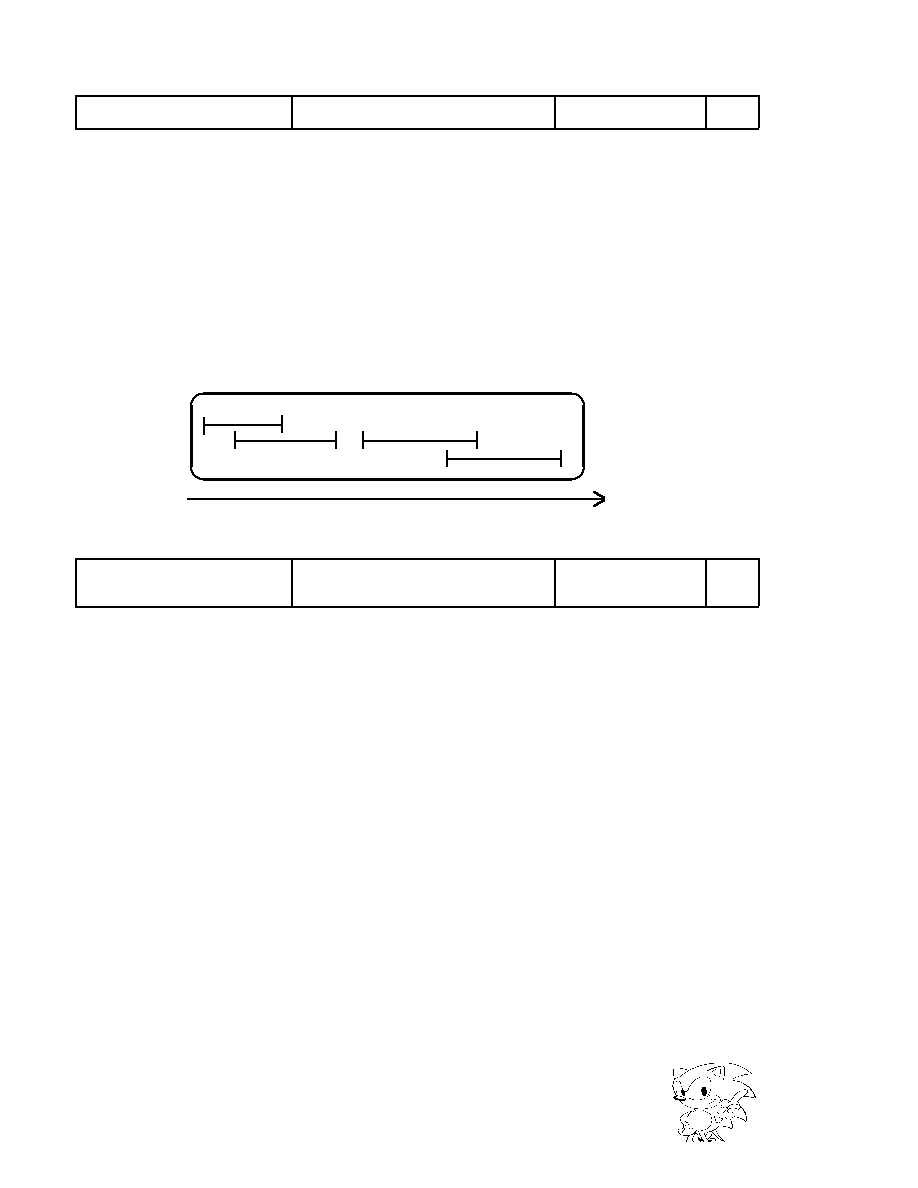

Figure 8.1 Stream Play Sequence No.
Title
Function
Function Name
No.
Function Specifications
Call Function Registration when CD
Buffer Is Full
STM_SetCdbufFull
2.5
[Format]
void
STM_SetCdbufFull(StmGrpHn grp, Sint32 nsct, StmFullFunc func,
void *obj)
[Input]
grp
:Stream group handler
nsct
:Empty sector count
func
:Call function (STM_FL_NULLFUNC when erased)
obj
:Registered object
[Output]
None
[Function Value]
None
[Function]
When the empty areas in the CD buffer fall below the specified value, the called
functions are registered.
[Remarks]
(a)
Registered functions have the following format.
void (*StmFullFunc)(void *obj);
(b)
Registered objects are turned over to the first argument of the registered
function.
Stream A
Stream B
Stream C
Stream D
Stream Group
FAD
22
background image
SEGA Confidential

8 . 3
Streams
Title
Function
Function Name
No.
Function Specifications
Stream Open Using File ID
STM_OpenFid
3.1
[Format]
StmHn
STM_OpenFid(StmGrpHn grp, Gfsfid, StmKey *key)
[Input]
grp
:Stream group handler
fid
:File ID
key
:Stream key
[Output]
None
[Function Value]
Stream handler (NULL when cannot be opened)
[Function]
Opens the stream using the file ID and registers the stream in the specified
stream group.
[Remarks]
(a)
The stream key file No. is not used.
Title
Function
Function Name
No.
Function Specifications
Stream Open Using Play Area
STM_OpenFrange
3.2
[Format]
StmHn
STM_OpenFrange(StmGrpHn grp, StmFrange *plyarea, StmKey *key)
[Input]
grp
:Stream group handler
plyarea
:Play area
key
:Stream key
[Output]
None
[Function Value]
Stream handler (NULL when cannot be opened)
[Function]
Opens the stream using the play area and registers the stream in the stream
group.
Title
Function
Function Name
No.
Function Specification
Resident Stream Open
STM_OpenResi
3.3
[Format]
StmHn
STM_OpenResi(StmGrpHn grp, GfsFid, StmKey, *Key Sint32 Fad)
[Input]
grp
:Stream handler
fid
:File ID
key
:Stream key
fad
:Transfer start FAD
[Output]
None
[Function Value]
Stream handler (NULL when cannot be opened)
[Function]
Opens resident streams.
Title
Function
Function Name
No.
Function Specifications
Stream Close
STM_Close
3.4
[Format]
void
STM_Close(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
None
[Function]
Closes the specified stream.
External Specification Document:
Saturn Stream System
23
background image
SEGA Confidential
Title
Function
Function Name
No.
Function Specifications
Stream Key Setting
STM_SetKey
3.5
[Format]
void
STM_SetKey(StmHn stm, StmKey *stmkey)
[Input]
stm
:Stream handler
stmkey
:Stream key
[Output]
None
[Function Value]
None
[Function]
Sets the stream key for the specified stream.
Title
Function
Function Name
No.
Function Specifications
Stream Information Acquisition
STM_GetInfo
3.6
[Format]
StmGrpHn
STM_GetInfo(StmHn stm, GfsFid *fid, StmFrange *plyarea, Sint32
*bn, StmKey *stmkey)
[Input]
stm
:Stream handler
[Output]
fid
:File ID (When opened using the play area (-1))
plyarea
:Play area
bn
:Buffer block No.
stmkey
:Stream key
[Function Value
Corresponding stream group
[Function]
Acquires specified stream information.
Title
Function
Function Name
No.
Function Specifications
Change From Sector count to Sector
Word
STM_SctToWord
3.7
[Format]
Sint32
STM_SctToWord(StmHn stm, Sint32 nsct)
[Input]
stm
:Stream handler
nsct
:Sector count
[Output]
None
[Function Value]
The word Nos. corresponding to the specified Sector Nos.
[Function]
Acquires the word Nos. from the specified sector areas starting from the
beginning of the data that is written in the CD buffer block.
[Remarks]
(a)
If a value larger than the read data word count is specified, the read sector count
will return.
(b)
Valid even if Forms 1 and 2 are mixed together.
24
background image
SEGA Confidential
Title
Function
Function Name
No.
Function Specifications
Change From Word No. to Sector No.
STM_WordToSct
3.8
[Format]
Sint32
STM_WordToSct(StmHn stm, Sint32 nword)
[Input]
stm
:Stream handler
nword
:Word count
[Output]
None
[Function Value]
Sector count corresponding to the specified word count
[Function]
Acquires the sector count from the specified word areas starting from the
beginning of the data that is written in the CD buffer block.
[Remarks]
(a)
If a value larger than the read data word count is specified, the read sector count
will return.
(b)
Valid even if Forms 1 and 2 are mixed together.
External Specification Document:
Saturn Stream System
25
background image
SEGA Confidential

8 . 4
Transfer Setting
Title
Function
Function Name
No.
Function Specifications
Transfer Area Setting
STM_SetTrBuf
4.1
[Format]
void
STM_SetTrBuf(StmHn stm, Uint16 *buffer, Sint32 bufsize)
[Input]
stm
:Stream handler
buffer
:Transfer area
bufsize
:Size of transfer area (word unit)
[Output]
None
[Function Value]
None
[Function]
Data transfer area is set in the specified stream.
[Remarks]
(a)
The default transfer mode is DMA from SCU.
(b)
When the transfer function is set, the transfer function has priority.
Title
Function
Function Name
No.
Function Specifications
Transfer Function Setting
STM_SetTrFunc
4.2
[Format]
void
STM_SetTrFunc(StmHn stm, StmTrFunc func, void *obj)
[Input]
stm
:Stream handler
func
:Transfer execution function
obj
:Registration object
[Output]
None
[Function Value]
None
[Function]
Sets the transfer function in the specified stream. (STM_TR_NULLFUNC for
erase)
[Remarks]
(a)
The format for the registered function is given below.
Sint32
(*StmTrFunc)(void *obj, StmHn stm, Sint32 nsct);
obj
:Registered object
stm
:Stream
nsct
:Sector count
(b)
The transferred sector data is deleted from the CD buffer block.
(c)
If data is being transferred at the time of a function end from DMA, etc., (-1) will
be returned.
26
background image
SEGA Confidential
Title
Function
Function Name
No.
Function Specifications
Transfer Start In Transfer Function
STM_StartTrans
4.3
[Format]
Uint16
*STM_StartTrans(StmHn stm, Sint32 *adlt)
[Input]
stm
:Stream handler
[Output]
adlt
:The portion of the transfer address that changes with each word
transfer.
[Function Value]
Transfer address
[Function]
Begins transfer based on the transfer function.
[Remarks]
(a)
When STM_SctToWord and STM_WordToSct are used for the transfer
function, they should be called before this function is executed.
Title
Function
Function Name
No.
Function Specifications
Transfer Gate Open and Close
STM_SetTrGate
4.4
[Format]
void
STM_SetTrGate(StmHn stm, Sint32 gate)
[Input]
stm
:Stream handler
gate
:Transfer gate status
[Output]
None
[Function Value]
None
[Function]
Opens and closes the specified stream's transfer gate.
Title
Function
Function Name
No.
Function Specifications
Setting Maximum Transfer Sector count STM_SetTrPara
4.5
[Format]
void
STM_SetTrPara(StmHn stm, Sint32 tsct)
[Input]
stm
:Stream handler
tsct
:Maximum transfer sector count (STM_TR_ALL for all read sectors.)
[Output]
None
[Function Value]
None
[Function]
Sets the maximum sector count that can be transferred at one time from the CD
buffer block to the transfer area.
[Remarks]
(a)
The data read into the CD buffer block is divided to a size less than this sector
size and transferred.
(b)
The default is one sector.
External Specification Document:
Saturn Stream System
27
background image
SEGA Confidential
Title
Function
Function Name
No.
Function Specifications
Setting Transfer Start FAD
STM_SetTrFad
4.6
[Format]
void
STM_SetTrFad(StmHn stm, Sint32 fad)
[Input]
stm
:Stream handler
fad
:Transfer start FAD setting
[Output]
None
[Function Value]
None
[Function]
Sets the FAD that begins transfer of the data in the CD buffer block.
[Remarks]
(a)
The default is the stream beginning FAD.
Title
Function
Function Name
No.
Function Specifications
Setting Transfer Mode
STM_SetTrMode
4.7
[Format]
void
STM_SetTrMode(StmHn stm, Sint32 tmode)
[Input]
stm
:Stream handler
tmode
:Transfer mode
[Output]
None
[Function Value]
None
[Function]
Sets the transfer method from the CD buffer block to the transfer area.
Title
Function
Function Name
No.
Function Specifications
Transfer Area Reset
STM_ResetTrBuf
4.8
[Format]
void
STM_ResetTrBuf(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
None
[Function]
Initializes the transfer destination pointer.
28
background image
SEGA Confidential

8 . 5
Read Information Acquisition
Title
Function
Function Name
No.
Function Specifications
CD Buffer Block's Sector count
Acquisition
STM_GetNumCdbuf
5.1
[Format]
Sint32
STM_GetNumCdbuf(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
The CD buffer block sector count
[Function]
Acquires the sector count that is read into the CD buffer block.
Title
Function
Function Name
No.
Function Specifications
Read Sector Information Acquisition
STM_GetSctInfo
5.2
[Format]
Bool
STM_GetSctInfo(StmHn stm, Sint32 sn, StmSct *sinfo)
[Input]
stm
:Stream handler
sn
:Sector No. (The first sector is STM_CDBUF_TOP)
[Output]
sinfo
:Sector information
[Function Value]
TRUE
There is a specified sector.
FALSE
There is no specified sector.
[Function]
Acquires the sector information that is read into the CD buffer block.
External Specification Document:
Saturn Stream System
29
background image
SEGA Confidential

8 . 6
Transfer Information Acquisition
Title
Function
Function Name
No.
Function Specifications
Transfer Area's Data count Acquisition
STM_GetLenTrBuf
6.1
[Format]
Sint32
STM_GetLenTrBuf(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
Data count (word unit)
[Function]
Acquires the transfer area data count (word).
Title
Function
Function Name
No.
Function Specifications
Transfer Area Full Check
STM_IsTrBufFull
6.2
[Format]
Bool
STM_IsTrBufFull(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
TRUE
When the area size is reached.
FALSE
When the area size is not reached.
[Function]
Checks whether the transfer area data count has reached the area size.
[Remarks]
(a)
The transfer area can be initialized by STM_ResetTrBuf.
30
background image
SEGA Confidential

8 . 7
Stream Server Execution
Title
Function
Function Name
No.
Function Specifications
Server Execution Group Specification
STM_SetExecGrp
7.1
[Format]
void
STM_SetExecGrp(StmGrpHn grp)
[Input]
grp
:Stream group handler
[Output]
None
[Function]
Specifies the stream group that is executed by the stream server.
[Remarks]
(a)
When NULL is specified, the stream server is in stop status.
(b)
When the stream group is reaccessed, the stop position is read.
Title
Function
Function Name
No.
Function Specifications
Server Execution
STM_ExecServer
7.2
[Format]
Sint32
STM_ExecServer(void)
[Input]
None
[Output]
None
[Function Value]
Stream access status
[Function]
Executes the stream server.
Title
Function
Function Name
No.
Function Specifications
Play Position Setting
STM_MovePickup
7.3
[Format]
void
STM_MovePickup(StmHn stm, Sint32 ofs)
[Input]
stm
:Stream handler
ofs
:Offset from the stream beginning (sector unit)
[Output]
None
[Function Value]
None
[Function]
Sets the play position of the stream group that contains the stream.
[Remarks]
(a)
Move destination FAD = stream beginning FAD + offset.
(b)
The pickup position is moved by STM_ExecServer.
External Specification Document:
Saturn Stream System
31
background image
SEGA Confidential

Title
Function
Function Name
No.
Function Specifications
Loop Start Stream Setting
STM_SetLoop
7.4
[Format]
void
STM_SetLoop(StmGrpHn grp, StmHn loopstm)
[Input]
grp
:Stream group handler
loopstm
:Loop start stream
[Output]
None
[Function Value]
None
[Function]
Specifies the stream group's loop start stream.
[Remarks]
(a)
Does not loop when NULL is specified.
(b)
When the loop start stream is closed, the beginning stream becomes the loop
start stream.
Title
Function
Function Name
No.
Function Specifications
Execution Status Acquisition
STM_GetExecStat
7.5
[Format]
SINT32
STM_GetExecStat(StmGrpHn grp, Sint32 *fad)
[Input]
grp
:Stream group handler
[Output]
fad
:FAD during play
[Function Value]
Stream access status
[Function]
Acquires the execution status of the specified stream group.
Title
Function
Function Name
No.
Function Specification
Stream Access End Check
STM_IsComplete
7.6
[Format]
Bool
STM_IsComplete(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
When stream access has ended
TRUE
When stream access has not ended
FALSE
[Function]
Checks whether access for the specified stream has ended.
[Remarks]
(a)
The timing of stream access end is given below.
Table 8.1 Stream Access End Timing
Transfer Gate
Timing
Closed
When the read has ended
Open
When the transfer has ended
32
background image
SEGA Confidential
Title
Function
Function Name
No.
Function Specifications
Stream Data Transfer
STM_ExecTrans
7.7
[Format]
Bool
STM_ExecTrans(StmHn stm)
[Input]
stm
:Stream handler
[Output]
None
[Function Value]
TRUE
Transferred
FALSE
Could not transfer
[Function]
Transfers the data of the specified stream in the CD buffer block.
[Remarks]
(a)
Always FALSE when the transfer gate is closed.
(b)
The set transfer mode and maximum transfer sector count are valid.
External Specification Document:
Saturn Stream System
33
background image
SEGA Confidential

8 . 8
CD Block Operation
Title
Function
Function Name
No.
Function Specification
Filter and CD Buffer Block Connection
STM_ConnectCdBuf
8.1
[Format]
void
STM_ConnectCdbuf(StmHn keystm, StmHn bufstm)
[Input]
keystm
:Connection origin stream handler
bufstm
:Connection destination stream handler (STM_CON_NULBUF when
disconnected)
[Output]
None
[Function Value]
None
[Function]
Connects the filter in the CD block to the buffer block.
[Remarks]
(a)
Reads from the filter allocated to the connection origin stream to the CD buffer
block allotted to the connection destination stream.
(b)
The same stream handler is specified when returning to the original setting.
(c)
Shows connection for when the stream key is set to the OR condition.

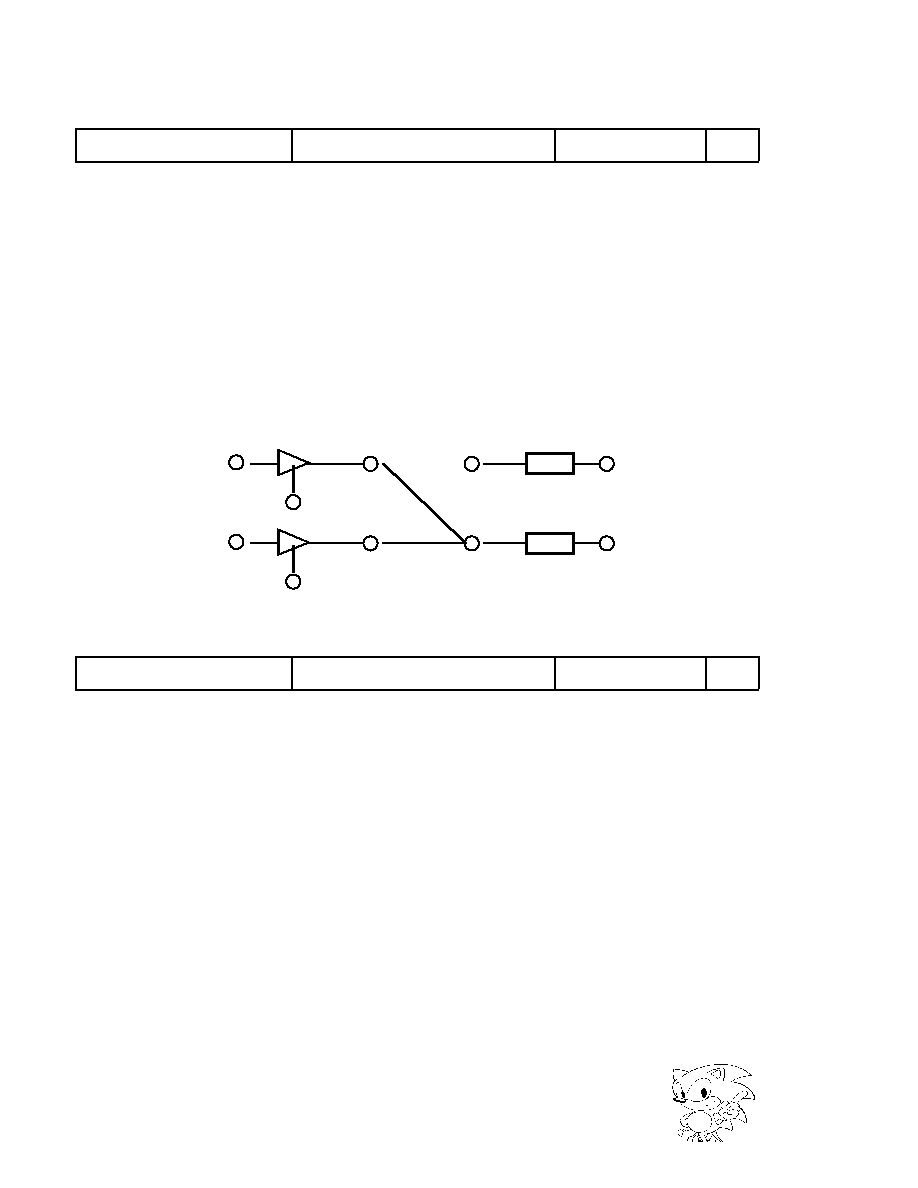

Figure 8.2 Connection When Stream Key Is Set to OR Condition
Title
Function
Function Name
No.
Function Specifications
CD Buffer Block Data Move
STM_MoveCdbuf
8.2
[Format]
void
STM_MoveCdbuf(StmHn src, Sint32 spos, Sint32 snum, StmHn dst)
[Input]
src
:Transfer source stream handler
spos
:Sector position (the beginning sector is STM_CDBUF_TOP)
snum
:Sector number (count) (STM_CDBUF_END when all the way to the
end)
dst
:Transfer destination stream handler
[Output]
None
[Function Value]
None
[Function]
Moves sector data from the buffer block in the CD block to filter.
[Remarks]
(a)
Moves sector data from the CD buffer block allotted to the transfer origin
stream to the filter allotted to the transfer destination stream.
A or B
A
B
34
background image
SEGA Confidential

Figure 8.3 Connection During Sector Data Move
Title
Function
Function Name
No.
Function Specifications
CD Buffer Block Data Erase
STM_EraseCdbuf
8.3
[Format]
void
STM_EraseCdbuf(StmHn stm, Sint32 spos, Sint32 snum)
[Input]
stm
:Stream handler
spos
:Sector position (STM_CDBUF_TOP for beginning of sector)
snum
:Sector number (count) (STM_CDBUF_END when all the way to the
end)
[Output]
None
[Function Value]
None
[Function]
Erases sector data in the CD buffer block allotted to the stream.
External Specification Document:
Saturn Stream System
35
background image
SEGA Confidential

8 . 9
Error Handling
Title
Function
Function Name
No.
Function Specifications
Registration of Call Function When
Error Occurs
STM_SetErrFunc
9.1
[Format]
void
STM_SetErrFunc(StmErrFunc func, void *obj)
[Input]
func
:Call function
obj
:Registered object
[Output]
None
[Function Value]
None
[Function]
Registers the function called when an error occurs.
[Remarks]
(a)
The details regarding errors have not been decided yet.
(b)
The registered function has the following format:
void (*StmErrFunc)(void *obj);
(c)
The registered object is turned over to the registered function's first argument.
Title
Function
Function Name
No.
Function Specifications
Error Status Acquisition
STM_GetErrStat
9.2
[Format]
StmErr *STM_GetErrStat(void)
[Input]
None
[Output]
None
[Function Value]
Error control structure
[Function]
Acquires error status.
[Remarks]
(a)
The details regarding errors have not yet been set.
36
background image
SEGA Confidential


Precautionary Items Regarding Stream System Library Ver. 0.1
(a) The maximum number of stream groups that can be open at the same time is 12.
(b) The number of streams that can be opened at the same time is a maximum of 24,
including the number of files currently open per file system
(c) The handling procedures for errors have not yet been set.
(d) To use the stream system, the file system and CD communication interface must
be linked.
External Specification Document:
Saturn Stream System
37
